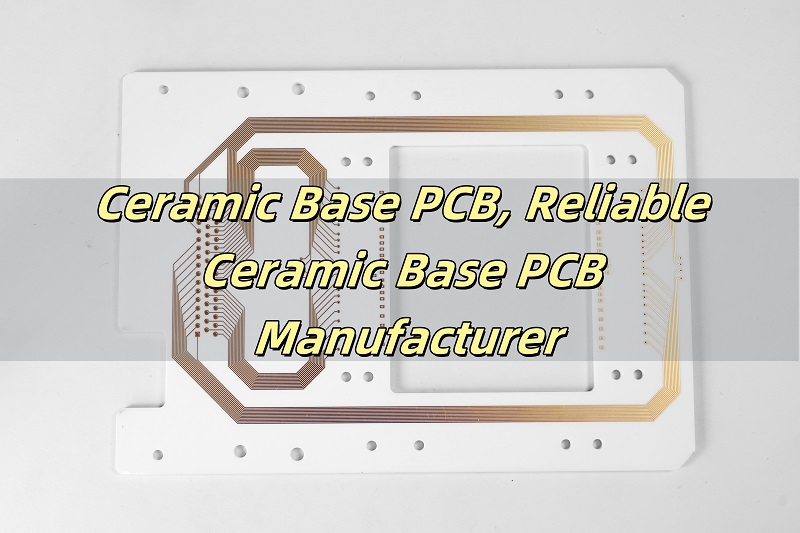

Ceramic Base PCB, Reliable Ceramic Base PCB Manufacturer

Table of Contents

Ceramic base PCB is gaining popularity due to their exceptional performance in challenging environments. As a leading ceramic base PCB manufacturer, Best Technology takes pride in offering top-quality solutions for a wide range of applications. This blog explores ceramic base PCBs, their benefits, applications, types, materials, design considerations, and why Best Technology stands out as the ideal partner for your PCB needs.

What Is Ceramic Base PCB?

A ceramic base PCB uses ceramic materials as its substrate instead of traditional options like FR4. These PCBs are renowned for their excellent thermal conductivity, electrical insulation, and mechanical stability. Designed for high-performance applications, they excel in environments requiring durability and precision.

Ceramic base PCB is often chosen for industries like aerospace, automotive, and medical devices, where reliability and efficiency are paramount. Its unique properties make them indispensable for cutting-edge technologies.

What Are The Benefits of Ceramic Base PCB?

Ceramic base PCBs offer several advantages that set them apart from conventional options. Their high thermal conductivity ensures efficient heat dissipation, making them ideal for power-intensive devices. Their low coefficient of thermal expansion minimizes the risk of mechanical stress, ensuring long-lasting performance.

These PCBs are also highly resistant to chemical and environmental damage. Their excellent electrical insulation supports stable and reliable operations, even under challenging conditions. Combined with their compact size and lightweight nature, ceramic base PCBs are a top choice for innovative and efficient electronic designs.

What Are The Applications of Ceramic Base PCBs?

Ceramic base PCBs find applications across various industries due to their superior properties. In the automotive sector, they are used in engine control systems and LED lighting. Aerospace applications include navigation systems and avionics, where reliability is critical.

In the medical field, ceramic base PCBs are essential for diagnostic devices, imaging systems, and surgical instruments. They are also widely employed in telecommunications for RF and microwave components. Consumer electronics, including LED displays and sensors, further benefit from their durability and efficiency.

What Are The Different Types of Ceramic Base PCB?

Ceramic base PCBs are available in several types, each designed to meet specific requirements:

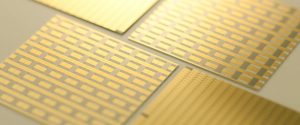

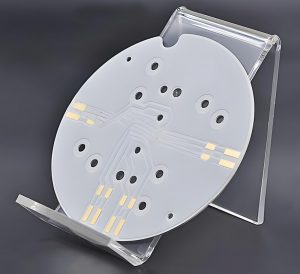

Aluminum Nitride (AlN) PCBs: Known for high thermal conductivity and excellent electrical insulation.

Alumina (Al2O3) PCBs: Cost-effective and suitable for a wide range of applications.

Beryllium Oxide (BeO) PCBs: Exceptional thermal performance, though less commonly used due to safety concerns.

Silicon Nitride (Si3N4) PCBs: High strength and thermal shock resistance, ideal for demanding environments.

Each type offers unique features to suit different industries and applications.

Why Turn To Best Technology For Ceramic Base PCB?

Best Technology is a trusted name in the PCB manufacturing industry, offering unmatched expertise in ceramic base PCBs. We cater to diverse customer needs with our wide product range, including various types of ceramic PCBs. Whether you require small quantities or bulk orders, our flexible production capabilities ensure your demands are met efficiently.

Our focus on quality is unwavering. Every product undergoes stringent testing to meet the highest standards. We prioritize fast delivery, ensuring your projects stay on schedule. With our customization services, you can rely on us for tailored solutions that fit your specific requirements. Our commitment to exceptional service makes us the preferred choice for customers worldwide.

What Is the Material of Ceramic Base PCB?

The materials used in ceramic base PCBs are critical to their performance. Common materials include:

Aluminum Nitride (AlN): Offers outstanding thermal conductivity and is ideal for high-power applications.

Alumina (Al2O3): Provides a balance of performance and cost-effectiveness, making it widely popular.

Beryllium Oxide (BeO): Delivers superior thermal performance but requires careful handling.

Silicon Nitride (Si3N4): Combines strength, thermal resistance, and reliability.

These materials are chosen based on application requirements, ensuring optimal performance and durability.

How To Design Ceramic Base PCB?

Designing ceramic base PCBs requires careful consideration of material properties, thermal management, and circuit layout. The substrate’s thermal conductivity must align with the application’s heat dissipation needs. Selecting appropriate components and ensuring proper spacing is essential for reliable operation.

Advanced fabrication techniques, such as laser drilling and metallization, are used to achieve precision and quality. Working with experienced manufacturers like Best Technology ensures that every aspect of your design is optimized for performance and longevity.

FAQs About Ceramic Base PCB

1. What industries use ceramic base PCBs?

Industries like automotive, aerospace, medical devices, telecommunications, and consumer electronics widely use ceramic base PCBs.

2. How does ceramic base PCB compare to traditional PCBs?

Ceramic base PCBs offer superior thermal conductivity, mechanical strength, and environmental resistance compared to traditional PCBs.

3. Can ceramic base PCBs be customized?

Yes, Best Technology provides fully customized ceramic base PCBs to meet unique application requirements.

4. What is the lead time for ceramic base PCBs?

With our fast delivery services, lead times are minimized, ensuring your projects stay on track. Normally, The fastest lead time is about 2 weeks.

5. Why is thermal conductivity important in ceramic base PCBs?

High thermal conductivity ensures efficient heat dissipation, critical for maintaining performance in high-power applications.

In short, ceramic base PCBs are indispensable for industries requiring high performance and reliability. Best Technology excels in delivering top-notch ceramic base PCBs tailored to your needs. With our diverse product range, exceptional quality, and fast delivery, we are your trusted partner for ceramic base PCB solutions. If you have any questions or any inquiry about ceramic base PCB products, warm welcome to consult us via sales@bestpcbs.com. Thank you.
