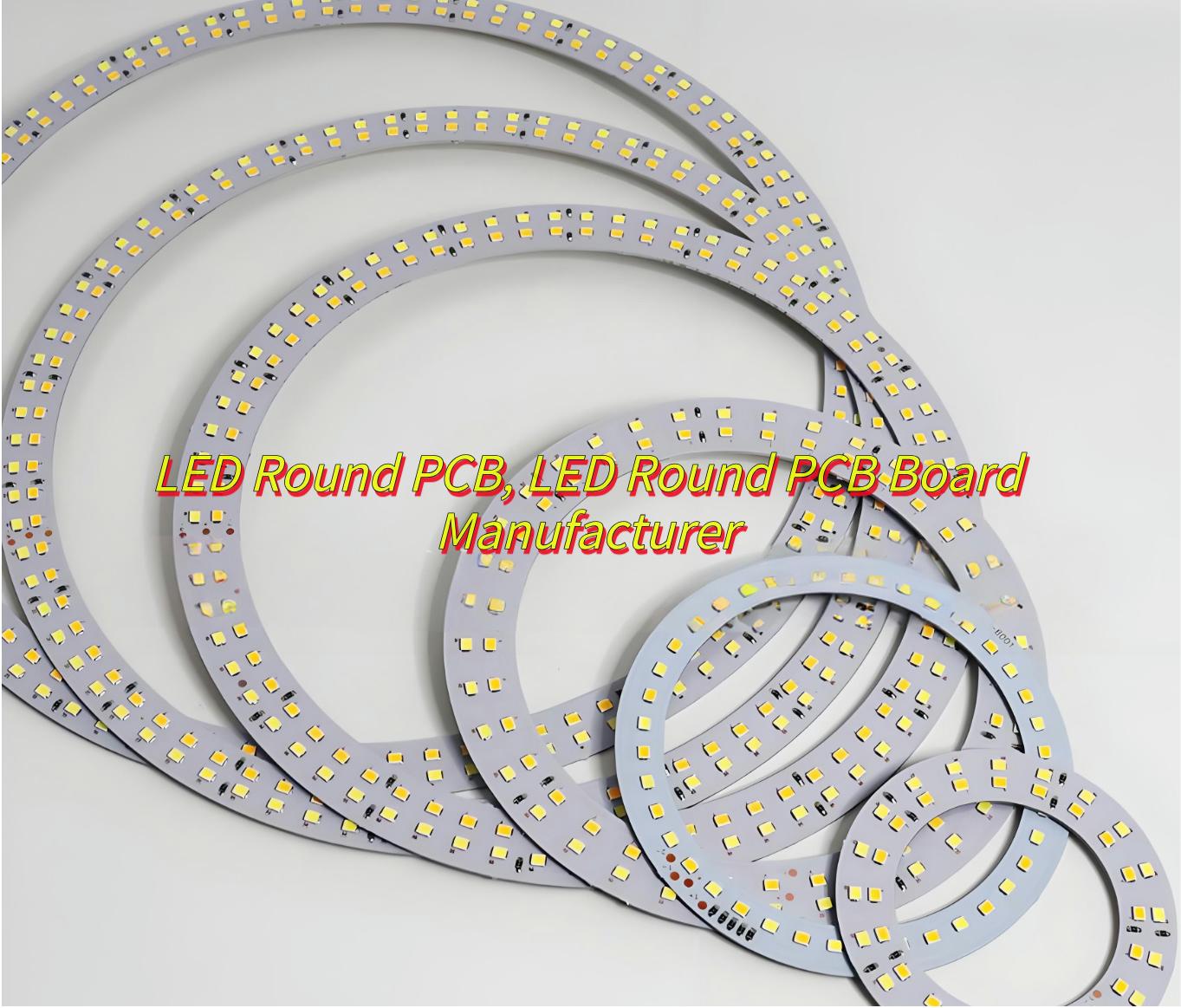

‌What Is an LED Round PCB?

‌An LED Round PCB is a circular printed circuit board designed to mount LEDs in a compact, space-efficient layout. Unlike traditional rectangular boards, its shape allows for innovative lighting designs in products requiring curvature or minimal footprint. Common variants include the ‌1.5-inch LED Round PCB Board‌ (ideal for wearables) and ‌Addressable Micro LED Round PCB‌ (enabling pixel-level control for dynamic displays).

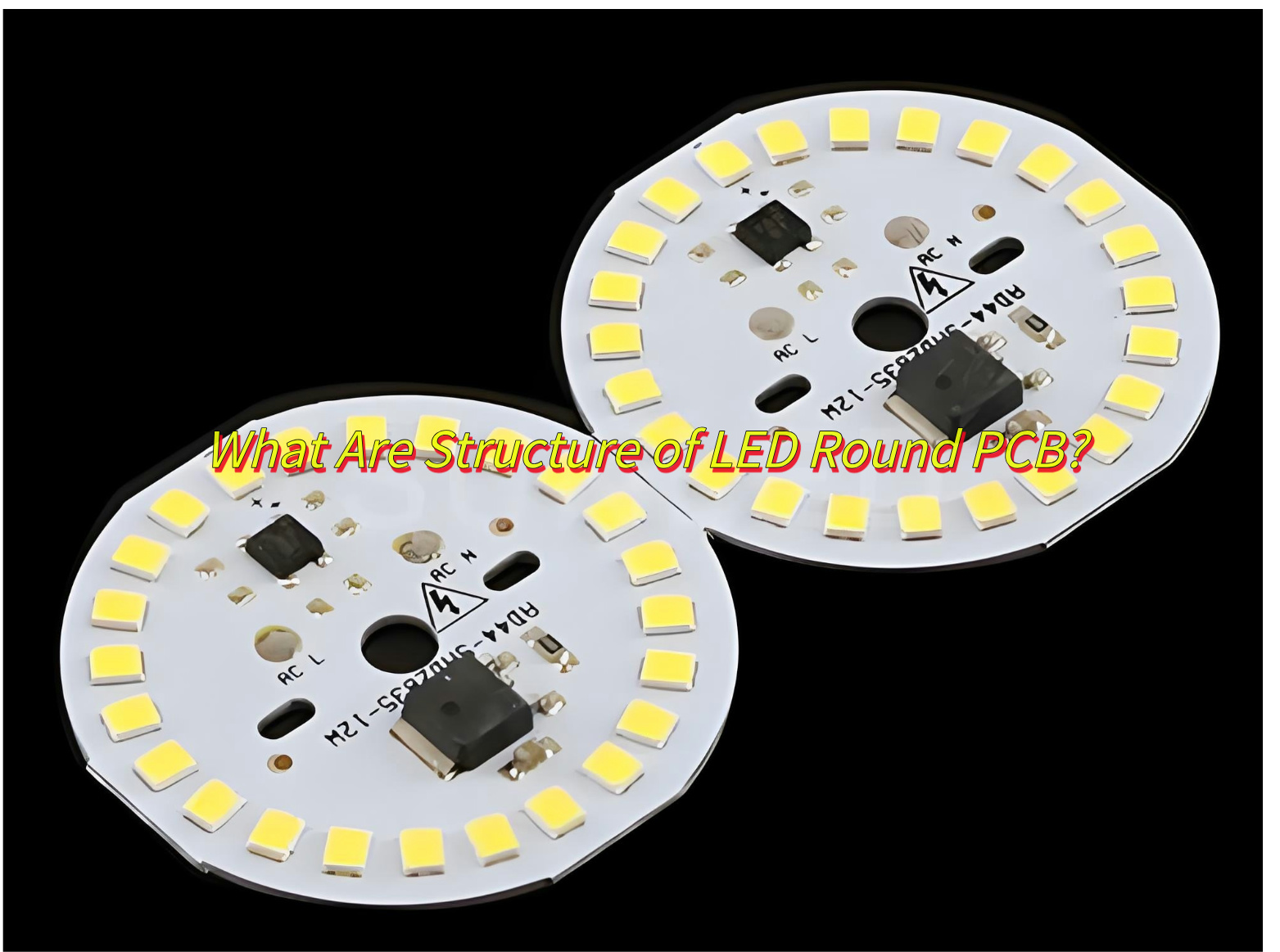

What Are Structure of LED Round PCB?

A typical Round LED PCB consists of:

‌Base Material‌: FR-4 (standard) or aluminum (for heat dissipation).
‌Copper Layer‌: Etched conductive pathways for electrical connectivity.
‌Solder Mask‌: Insulating layer to prevent short circuits.
‌Silkscreen‌: Component labels for assembly accuracy.
‌LED Mounting Pads‌: Precision-placed to ensure uniform light distribution.

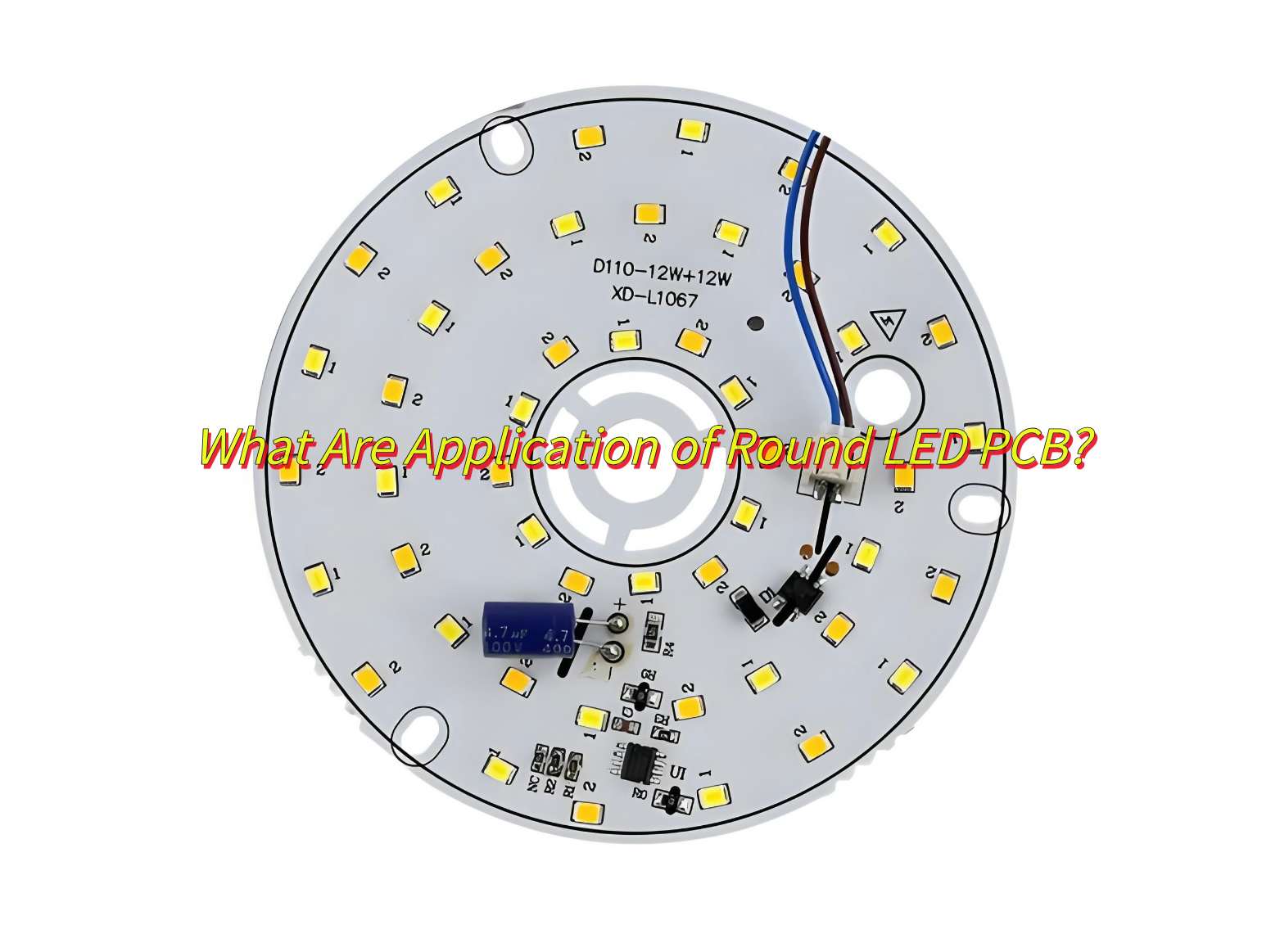

What Are Application of Round LED PCB?

Here are applications of round LED PCB:

Consumer Electronics‌: Smartwatch backlighting, VR headset indicators.
‌Automotive‌: Dashboard lighting, interior ambient systems.
‌Medical Devices‌: Surgical tool illumination, diagnostic equipment.
‌Industrial‌: Machine status indicators, control panel backlighting.
‌Architectural‌: Curved decorative lighting, signage.

‌What Certifications Are Required to Produce LED PCB Round?

As a LED Round PCB Manufacturer, the following certifications are required to produce LED PCB round:

Mandatory:‌ RoHS (global), ISO 9001 (quality), CE (EU), UL (North America).
‌Regional:‌ FCC (U.S. electronics), CCC (China), PSE (Japan).
‌Specialized:‌ IATF 16949 (automotive), DLC (energy efficiency).

How to Select a Reliable LED Round PCB Board Manufacturer?

Here are some ways to how to select a trusted LED round PCB board manufacturer:

Confirm that the manufacturer has round LED PCB special technology, including thermal management system design, multilayer board (4-16 layers) production capacity and precision drilling process, and requires the use of advanced equipment such as automated assembly lines and LDI exposure machines.
Require ISO 9001 certification, provide AOI/X-ray inspection reports, and verify the quality of sample solder joints, component alignment accuracy and heat dissipation performance.
Ensure the use of LED-specific substrates (such as aluminum substrates, CEM-3), prohibit non-certified components, and the thickness of copper foil must meet the high current carrying requirements.
Support 24-hour rapid prototyping, seamless switching from small batches to large batches, and provide design for manufacturability (DFM) optimization services.
Compare the price-marking scheme (including surface treatment costs such as HASL/ENIG), and negotiate long-term cooperation ladder prices and free first sample policies.
Confirm to provide 24-hour technical support and 48-hour response to after-sales issues, and give priority to integrating the whole process of design-procurement-assembly service providers.

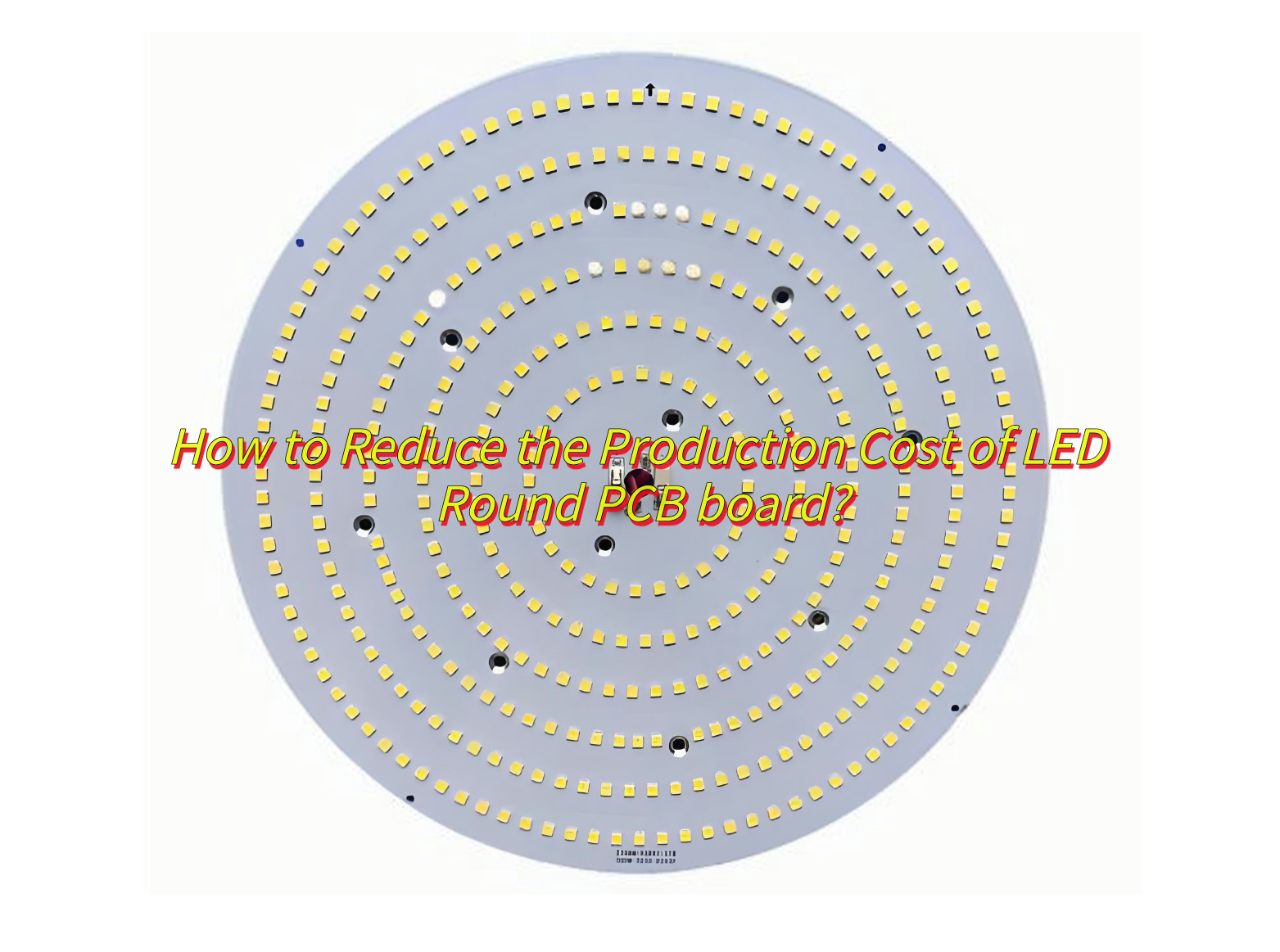

How to Reduce the Production Cost of LED Round PCB board?

Design Optimization‌: Minimize board size and layers; reuse standardized layouts to cut material and design costs.
‌Material Selection‌: Use cost-effective substrates (e.g., CEM-3), optimize copper thickness, and prioritize generic LEDs.
‌Process Efficiency‌: Automate assembly, simplify drilling (avoid micro-vias), and choose low-cost surface finishes (e.g., HASL).
‌Testing & QC‌: Validate with prototypes early and implement SPC to reduce defects.
‌Supply Chain‌: Bulk purchase materials and source locally to lower logistics costs.
‌LED-Specific‌: Adopt COB integration to eliminate packaging and optimize thermal design with aluminum-core substrates.

How Does Addressable Micro LED Round PCB Achieve Pixel-Level Control?

This is how addressable micro LED round PCB achieve pixel-level control:

Integrated CMOS Control‌-Each Micro LED connects to a dedicated CMOS driver for individual control, enabling ultra-fast response (25 ns) and low power use (5 mW/pixel). Shared P-electrode and isolated N-electrode structures ensure precise pixel activation.
High-Density Circuit Design‌-Precision drilling (≤50 μm holes) and multi-layer stacking (4-16 layers) achieve 4 μm pixel spacing (5100 PPI). Flip-chip bonding integrates LEDs and drivers, reducing signal delays.
Digital Signal Systems‌-Single-wire protocols (e.g., WS2811/WS2812) cascade RGB data to driver ICs for dynamic color control. Active drivers (TFT/NMOS) offer 450 MHz bandwidth for smooth brightness/grayscale adjustments.
Precision Manufacturing‌-Laser/elastic transfer methods place LEDs on PCB pads with >99% accuracy. Transparent epoxy encapsulation minimizes light interference and improves heat management.
Signal Stability‌-LVDS reduces noise; flexible polyimide substrates prevent circuit damage in curved layouts. Isolated power zones protect signal integrity between digital/analog components.
Smart Software Integration‌-Custom algorithms (PWM, gamma correction) sync with hardware via SPI/I2C for 240 Hz refresh rates. Backup circuits replace failed pixels automatically to maintain display quality.

Can 1.5 inch LED Round PCB Board Be Customized?

Yes, 1.5-inch LED round PCB boards can be customized and other sizes can be customized. Suppliers like Best Technology offer tailored designs for circular layouts, including aluminum or copper-core materials for heat dissipation and signal integrity optimization. Customization options cover touchscreen integration, high-density LED arrangements, and compatibility with standard mounting structures.

To sum up, that’s all about definition, structure, application of round LED PCB, as well as how to select a trusted LED PCB round board manufacturers, how addressable micro LED round PCB works and if 1.5 inch LED round PCB board be customized. If you have any other issue for round LED PCBs, please leave a message below this blog.
