In the world of printed circuit boards (PCBs), understanding material properties is crucial. One such property is Tg, or glass transition temperature. For FR4 PCBs, knowing what Tg means can significantly impact design and performance. In this blog, we’ll explore what Tg is, how it’s measured, its importance, and other related questions.

What Does Tg Mean in PCB Manufacturing?

Tg stands for glass transition temperature. It refers to the temperature at which a polymer material, such as the resin in a PCB substrate, transitions from a hard, glassy state to a softer, rubbery state.

For the circuit board, the ‌Tg value reflects the highest temperature it can withstand. When the temperature exceeds Tg values, ‌ the molecular structure of the circuit board material will be changed, ‌ lead to changes in its physical properties. Such as mechanical strength, size stability, adhesive, water imbibition, thermal expansion, etc. ‌Therefore, the level of TG value of the PCB directly affects the stability and high temperature resistance of the circuit board.

What is Tg meaning in FR4 PCB? - Best Technology

In the high temperature environment, if the TG value of the circuit board is too low, it is easy to cause PCB deformation, fracture, cracking and other problems, affecting the reliability and life of the printed circuit board. If the TG value of the circuit board is too high, the PCB is easy to become hard and brittle, affecting the processability and flexibility of the circuit board.

How is Tg Measured in FR4 Materials?

Accurate measurement of Tg is crucial for ensuring the performance and reliability of FR4 PCBs. Knowing the exact Tg helps in selecting the appropriate material for specific applications, particularly those involving high temperatures and thermal cycling. Using materials with a Tg well above the operating temperature ensures the PCB will maintain its mechanical and electrical properties under expected conditions.

The primary method for measuring Tg in FR4 materials is by differential scanning calorimetry (DSC). It involves heating a small sample of the material at a controlled rate, typically between 10°C to 20°C/min. As the sample heats, the DSC measures the heat flow into the material and records it as a thermogram. The Tg is identified as the temperature where there is a noticeable change in heat capacity, appearing as a step or inflection point on the thermogram. DSC is widely used because it provides precise and reliable Tg measurements.

Additionally, Dynamic Mechanical Analysis (DMA) and Thermomechanical Analysis (TMA) also can be used to measure the Tg value.

Why is Glass Transition Temperature Critical in PCBs?

Glass transition temperature is critical because it affects the thermal and mechanical properties of the PCB. If a PCB operates near or above its Tg, it can experience issues like delamination, warping, and electrical failure. Here are some benefits of Tg.

Thermal stability

One of the main reasons is its role in determining thermal stability. During operation, PCBs are subjected to varying temperatures due to power dissipation from electronic components and environmental conditions. Make sure the Tg of the PCB material is well above the maximum operating temperature, it helps maintain mechanical stability and reliable performance under thermal stress.

Mechanical Strength

The Tg value also affects the mechanical strength and durability of the PCB. Below the Tg, the material is rigid and can withstand mechanical stress without significant deformation. This rigidity is essential for maintaining the structural integrity of the PCB, especially during assembly processes like soldering, where the board is subjected to mechanical and thermal stresses.

Thermal Management

Thermal management is very important to electronics, especially for those miniaturized electronic devices. If the PCB itself has good thermal management, then designers no need to install heatsink or coolers. Materials with higher Tg values exhibit lower coefficients of thermal expansion (CTE), meaning less expansion and contraction with temperature changes.

Application-specific requirements

Different applications have varying thermal and mechanical requirements. High-performance computing, automotive, aerospace, and industrial electronics often operate in environments with high temperatures and thermal cycling. For these applications, using PCB materials with appropriate Tg values is crucial.

What is the Typical Tg Value for Standard FR4 PCBs?

Standard FR4 materials generally have Tg values in the range of 130°C to 140°C. For high-performance applications, materials with higher Tg values are necessary. The table below lists some common high Tg materials used in PCB manufacturing, along with their Tg values and characteristics.

Material	Tg Value (°C)	Characteristics	Applications
ISOLA IS410	180	Excellent thermal and mechanical properties	High-reliability applications
Nanya NP-175	175	High thermal stability, good mechanical strength	Automotive, industrial electronics
Shengyi S1000H	170	Cost-effective, widely used	Consumer electronics, industrial applications
Ventec VT-47	170	High Tg and low CTE	High-density interconnect (HDI) PCBs
Rogers 4350B	280	Extremely high Tg, excellent thermal stability	RF and microwave applications

(Common used high Tg materials)

Can You Explain the Difference Between Tg and Td in PCBs?

Tg and Td (decomposition temperature) are two different thermal properties. Unlike the reversible physical change associated with Tg, decomposition is an irreversible chemical process. At Td, the polymer chains in the material break down, leading to a loss of structural integrity and release of volatile compounds. Key points about Td include:

1. Chemical Stability

Td represents the upper thermal limit of a material’s chemical stability. Exceeding Td results in the breakdown of the polymer structure, rendering the material unsuitable for further use.

2. Material Selection

Knowing the Td helps in selecting materials for high-temperature applications. A material’s Td should be well above the maximum operating temperature to prevent degradation.

3. Safety and Reliability

Operating a PCB above its Td can result in catastrophic failure, including charring, delamination, and loss of electrical performance. The operating temperature remains below Td is critical for safety and reliability.

How Do You Choose the Right Tg Value for Your PCB Design?

Choosing the right Tg value depends on the operating environment and thermal demands of your application. Consider factors such as the maximum operating temperature, the thermal cycling the PCB will undergo, and the mechanical stresses it will face. Consulting with material suppliers and using simulation tools can help make an informed decision. According to our 18 years experience in PCB, we summarized a recommend Tg value for each application. Hope this is useful for you guys.

Consumer electronics

If your PCB will be used in standard consumer electronics, just like smartphones and tablets, a Tg value of around 130°C to 140°C is typically sufficient. These devices generally do not encounter extreme temperatures or thermal cycling.

Automotive applications

Automotive PCBs are always exposed to high temperatures and significant thermal cycling. A Tg value of 170°C or higher is recommended to ensure reliability and performance under the hood. So, Rogers material is good for this kind of PCB.

Aerospace and defense

Applications in aerospace and defense require materials that can withstand extreme temperatures and harsh environments. High Tg materials with values of 180°C or more are often used to meet these stringent requirements.

Industrial Electronics

Industrial environments can vary widely, but generally, high Tg materials are preferred due to the exposure to high temperatures and mechanical stress. A Tg value of at least 150°C to 170°C is advisable.

Best Technology is a well-known PCB and PCBA assembly provider in Asia and Vietnam. We have a large facility for handling low-medium to mass production PCBs, and supporting for various kinds of custom PCBs. Some special PCBs are available here, like bus bar PCB for new energy vehicles, heavy copper PCB for high power and high current PCBs, ceramic PCBs for harsh environments, extra thin PCB, RF PCB, microwaves PCB, IC substrate PCB and so on.

For more information, please do not hesitate to contact us.

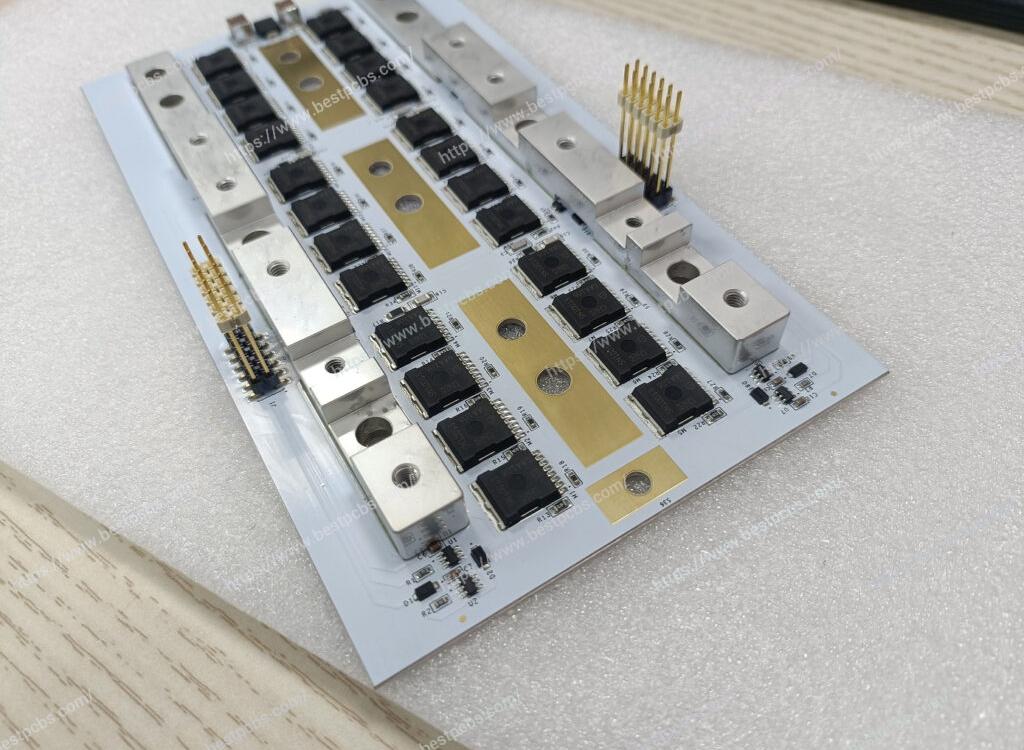

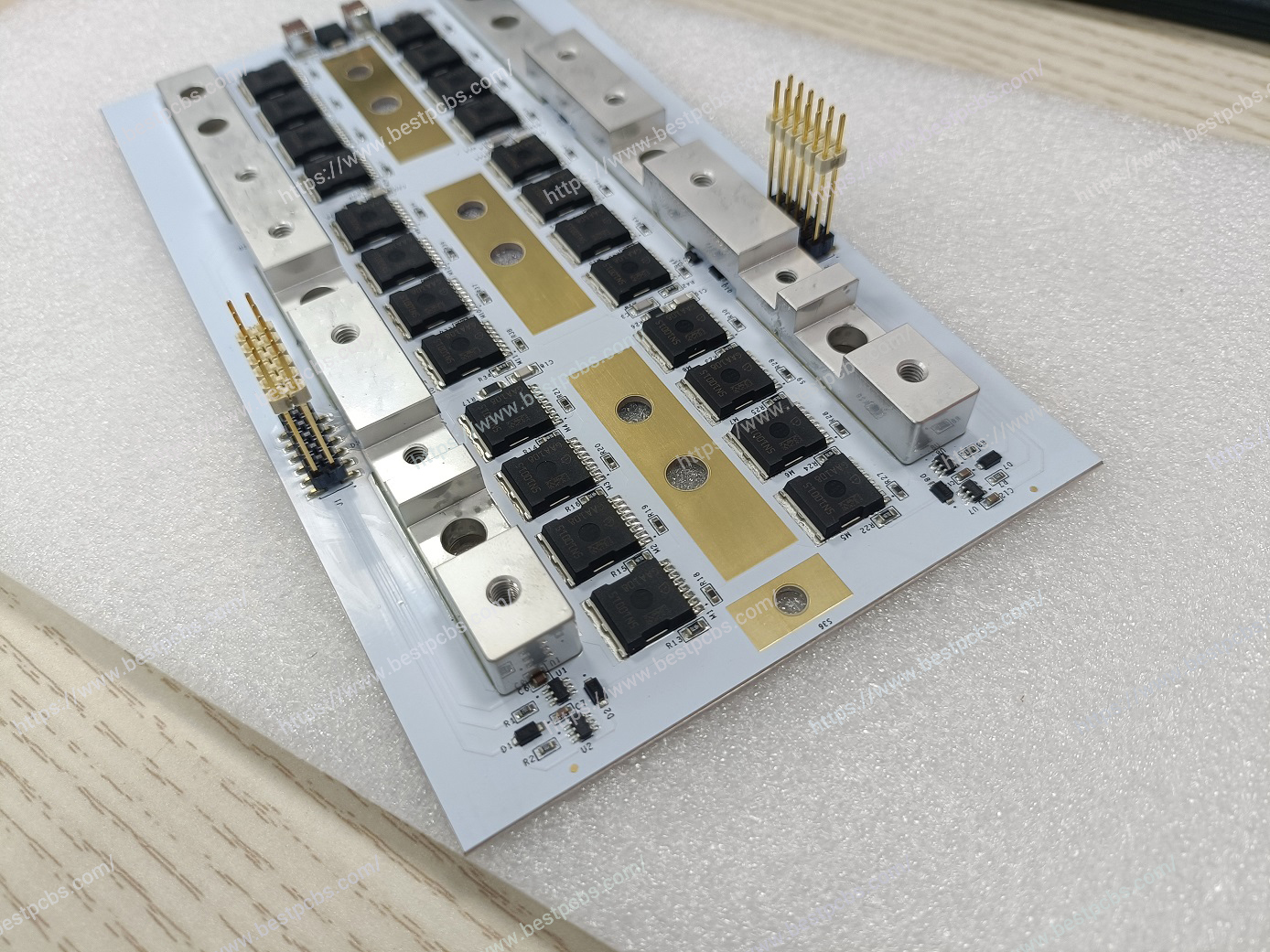

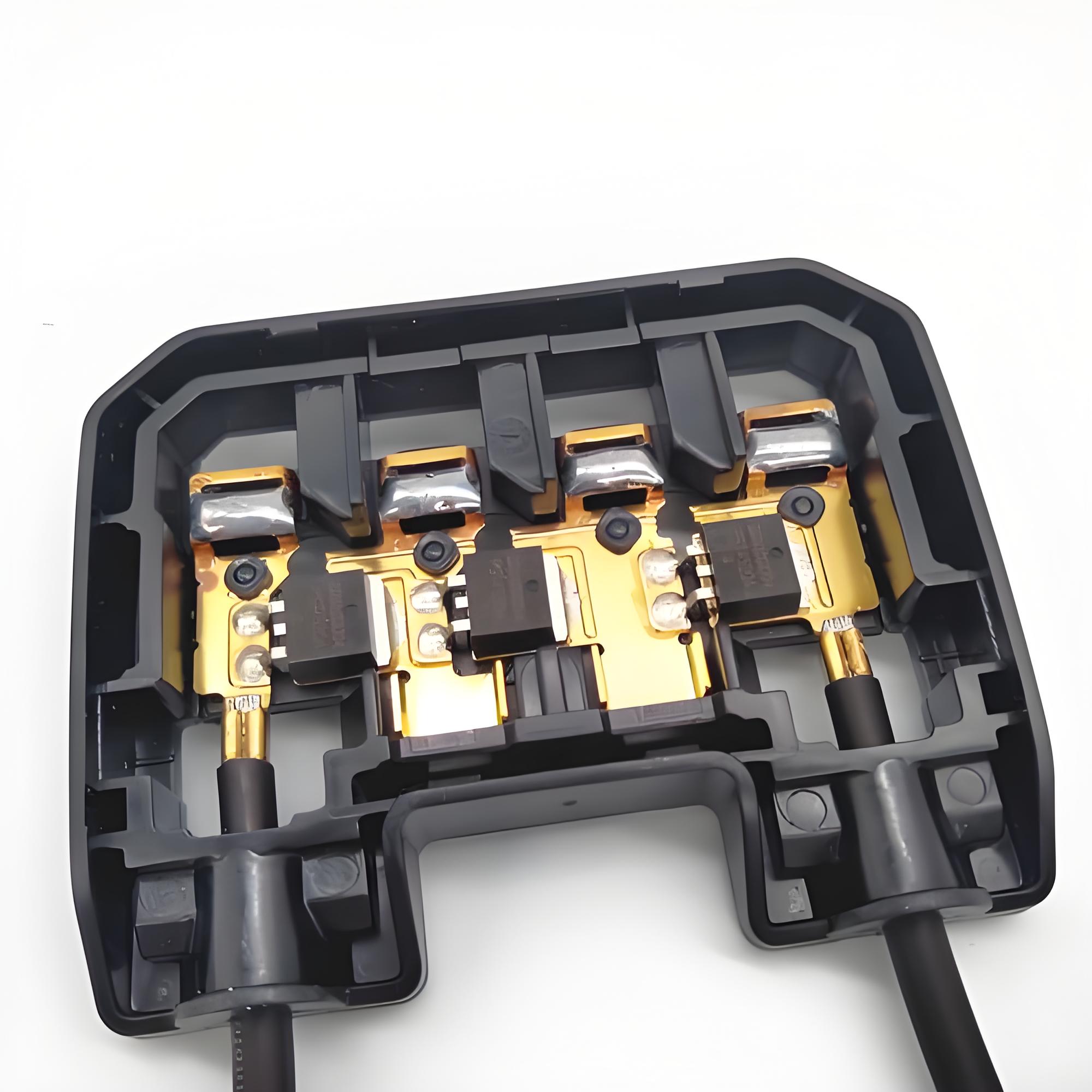

What Is A Bus Bar PCB?

At the beginning, we should know what a bus bar PCB is. The Bus bar PCB is a special and newest design that integrates the FR4 material and metal alloy into a whole product, which allows the current transfer path into the circuit board. Due to the current carry capacity and special shape, it also called busbar PCB, embedded bus bar PCB, extruded copper PCB, copper inlay PCB, copper extrusion PCB.

Bus bar circuit board provide a more compact and efficient means of current distribution than traditional wires and cables. This design improves the overall performance of the electronic system by reducing inductance, increasing current carrying capacity, and optimizing heat dissipation.

What Are the Advantages of Bus Bar PCB?

Bus bar PCB offers numerous benefits when be using the power supply applications, its main functions are:

1. Reduce the inductance

Bus bar PCBs reduce inductance by allowing current to flow between tightly spaced conductors. This layout reduces the loop area and thus the inductance value. This is particularly important for high-frequency and highspeed applications, as it reduces voltage spikes and noise, improving system stability and performance.

2. Enhanced current carrying capacity

Due to its large cross-sectional area and high-quality conductive materials, Bus bar PCB can efficiently carry large currents. This is particularly useful in applications that require a large amount of power distribution, such as power supplies, electric vehicles, and renewable energy systems. Bus bar PCBs support higher current density compared to conventional PCB wiring, which improves thermal management and reliability.

3. Improve thermal management

The Bus bar PCB effectively dissipates heat generated by key components. In high power applications, the buildup of heat can affect performance and life. The Bus bar PCB helps maintain optimal operating temperatures through efficient heat distribution, reducing the need for additional cooling mechanisms.

4. Save space and weight

The compact design of the Bus bar PCB reduces the overall size and weight of the electronic components. Its simple construction and elimination of multiple wire connectors contribute to space savings. This is particularly beneficial for applications where size and weight are critical, such as the aerospace and automotive industries.

5. Improved reliability and durability

Bus bar PCBS have superior mechanical strength and durability compared to traditional wiring systems. Its robust construction and secure connections reduce the risk of loose connections, failure due to vibration, and mechanical wear. This improves system reliability and service life for harsh environments and demanding applications.

6. Simplify assembly and maintenance

Using a Bus bar PCB simplifies the assembly process because it reduces the number of individual wires and connectors. This not only speeds up installation, but also reduces assembly errors. In addition, the Bus bar PCB provides a more orderly and accessible layout for easy troubleshooting and repair.

7. Cost effective

Although there may be a high initial cost, Bus bar PCBs can provide cost savings in the long term. Its advantages in reduced inductance, improved thermal management and enhanced reliability reduce operating and maintenance costs. In addition, Bus bar PCB reduces the need for addons, such as heat sinks or complex wiring bundles, thereby increasing overall cost effectiveness.

What Applications of Bus Bar PCB?

Due the high current carry capacity of the bus bar PCB, makes it very suitable for power supply or power management devices. Bus bar PCB can perform well in such fields. Here are some common application examples that bus bar PCB can be used for. If you are seeking for a PCB to integrate into your power supply project, then bus bar PCB is the go-to-choice.

1. Power Electronics

In power converters, inverters and high-current power supplies, Bus bar PCBS are widely used because of their ability to efficiently handle high currents and excellent thermal performance.

2. The Automobile industry

Another popular field that bus bar PCB used in is automotives, especially in electric vehicles (EVs) and hybrid electric vehicles (HEVs). In the electric cars, it can be used for battery connectivity and power distribution, contributing to weight reduction and performance improvements.

3. Renewable energy

Bus bar PCB is an environment friendly material, it is often used in solar systems, wind turbines and energy storage solutions to manage high currents and enhance reliability.

4. Industrial equipment

In industrial machinery and equipment, Busbar PCB provides powerful and efficient power distribution for motors, drives and control systems.

5. Aerospace

Bus bar PCBS are used in aerospace applications, such as avionics and power distribution systems, where size, weight and reliability are key factors.

Final Words

All in all, bus bar PCB offers significant advantages in handling high currents, improving thermal management, and providing reliable power distribution across various applications. By integrating bus bar PCBs, industries can achieve better power management, reduced system size and weight, and improved overall reliability.

Best Technology is a one-stop PCB solution provider in Asia, we offer various kinds of PCBs not only include bus bar PCB, but also Extra thin PCB, RF PCB, HDI PCB, Heavy copper PCB, Ceramic PCB, Metal Core PCB, Flex PCB and rigid flex PCB, PCBA and so more. We have more than 17 years-experience in PCB design and manufacturing, and served more than 1200 customers. Choosing Best Technology as your supplier ensures you get high quality PCBs, helping to improve the performance and competitiveness of your products. Contact us right now to customize your own PCB!

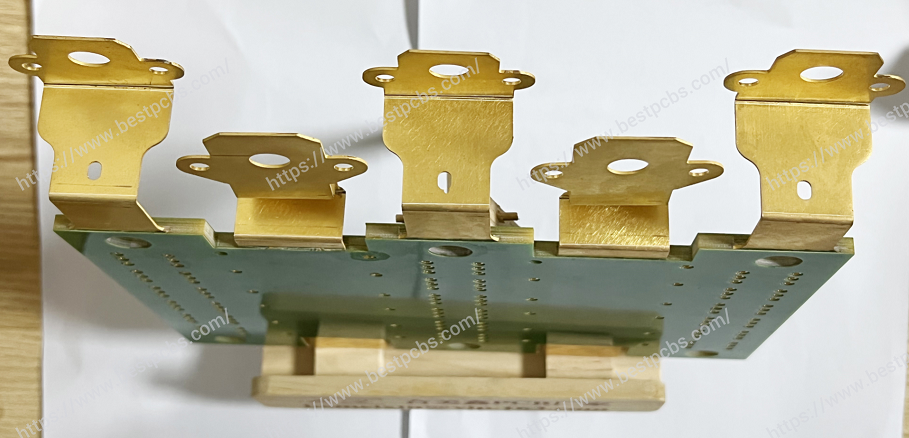

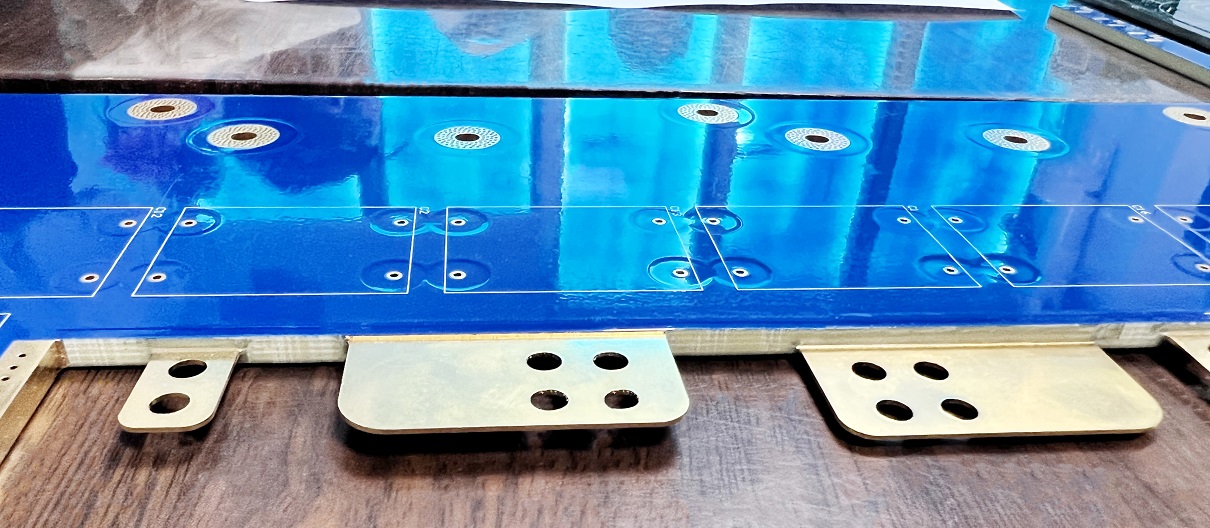

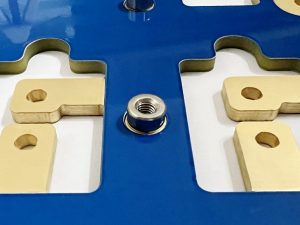

What is a Bus Bar PCB?

Bus bar PCB is one of a new type of heavy copper PCB and it was made by FR4 fiber glass material and laminated with metal alloys. It transmits electrical energy from one point to multiple output points through integrated conductive paths, which are typically made of copper or aluminum. Busbar PCBs are designed to reduce resistance and inductance, thereby maximizing current transfer efficiency and minimizing energy loss.

Generally, if it is used in a charging pile product, there are generally at least 2 busbar circuit boards, one is the main control board (a larger one), and the other is a smaller board, both of two need to use the bus bar process.

Bus bar PCB is widely used in power distribution systems, electric vehicles, industrial equipment and other occasions requiring high current. They are designed to simplify system wiring, reduce electromagnetic interference (EMI), and improve overall reliability and performance of the product.

Why is High Current Bus Bar PCB Important?

Bus bar PCB has irreplaceable advantages in current transmission and power distribution. They mainly feature three functions when used in electronics. First of all, they are able to efficiently handle large currents without generating excessive heat. This is what standard FR4 PCB cannot achieved. Secondly, bus bar PCB has ability to significantly reduce the complexity of the circuit layout design. By integrating the current transfer path, they can reduce the number and length of circuits required by the system, thereby simplifying system design and reducing potential failures.

In addition, bus bar PCB helps reduce electromagnetic interference. Due to the design optimization of the conductive path, the noise generated during current transmission can be effectively suppressed. This characteristic makes it perform well in high-noise environments, ensuring the stability and reliability of electronic devices.

What Should We Consider When Designing A Bus Bar PCB?

Due to it is a new innovation in the industry, it is a not a simple thing to design a bus bar circuit board successfully. It’s a complex task that requires consideration of several technical factors to ensure its effectiveness and reliability. The following are the main aspects to focus on when designing a bus bar PCB.

Copper Thickness

The first important thing is what’s the copper thickness of busbar you want to. You must know, thicker copper allows for higher current carrying capacity, but not thicker thickness is better, it should be calculated according to the voltage and current it will used in.

Current capacity and temperature management

The bus bar PCB should be designed to carry the maximum expected current while keeping the temperature within a safe range. This is usually achieved by selecting the appropriate conductor material and optimizing the cross-sectional area of the conductor. For example, for 100A current requirements, a typical design would use copper strips with a thickness of 5mm to ensure that the temperature rise does not exceed 20C.

Resistance and inductance

Low resistance and low inductance are key to bus bar PCB design. The shape, thickness and layout of conductors should reduce resistance and inductance as much as possible to improve the efficiency of current transmission. For example, the use of trapezoidal or flat conductors can effectively reduce inductance, thereby improving current transmission performance.

Electromagnetic compatibility (EMC)

Bus bar PCB design also needs to consider electromagnetic compatibility issues to ensure that it does not produce too much electromagnetic interference (EMI), while being able to resist external electromagnetic interference. By optimizing the conductor layout and using shielding materials, the electromagnetic compatibility of the bus PCB can be significantly improved.

Thermal management

Because bus bar PCB aims to transmit high current, thermal management is an important part of the design. The thermal design should ensure that the PCB can effectively dissipate heat and prevent overheating damage. For high power applications, radiators or active cooling are often used to ensure temperature control within design specifications.

Best Technology Manufacturing Capability of Bus Bar PCBs

As the one of leading PCB manufacturers in China, Best Technology has exceptional capabilities in the production of busbar PCBs. Our manufacturing capabilities include high-precision metal processing technology to produce busbar PCBs with complex geometry and tight tolerances. In addition, we also have the production capacity of multi-layer bus bar PCB to meet the needs of different applications.

Best Technology is committed to providing customers with high-quality, high-performance busbar PCBs to support their power management and distribution systems. Below is a basic parameter of our bus bar PCB manufacturing capability. For more details, welcome to e-mail us at sales@bestpcbs.com.

(Best technology capability of bus bar pcb)

Nowadays, bus bar PCBs are widely used in power distribution systems, electric vehicles, industrial equipment and other occasions requiring high current. According to statistics, the global busbar market is expected to grow at a compound annual growth rate (CAGR) of 6.5% between 2023 and 2028, demonstrating the growing importance of this technology in multiple industries.

With the rapid development of the eras, the most important thing for designers or buyers is to find a reliable bus bar PCB manufacturer to meet the high demands of the market. As the expert of the bus bar PCB fabricating, Best Technology has the mature technology and advanced equipment to produce high quality bus bar PCBs. Contact us right now to get your own bus bar PCB solutions!

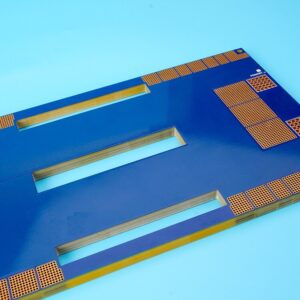

How Important is Thermal Management in High Power PCB Design?

Thermal management is crucial in high power PCB design to prevent overheating and ensure reliable operation. High power components generate significant heat, which can damage the PCB and reduce its lifespan if not managed effectively. Here are some key strategies:

Use thicker copper layers to improve thermal conductivity as much as possible. For example, a 2 oz/ft² copper layer can carry approximately 10 amps of current.
Thermal Vias are important elements in the complex designs, they serve as the heat dissipation paths to conduct heat away from high power components.
Select appropriate heat sinks based on the power dissipation requirements. For instance, a heat sink with a thermal resistance of 1°C/W can handle 50W of power dissipation with a 50°C temperature rise.

How to Optimize Power Distribution in High Power PCBs?

Normally, high power PCBs are featuring in thick copper thickness, wider trace space and distance, less or no BGA or fine pitch components. And because of the operation of high current, the circuit board is more likely to have the problem of heating, so the high-power PCB always do some heat treatment to avoid overheating, such as design dissipation via holes or adding some heat sinks. Anyway, effective power distribution is essential to ensure stable operation and prevent voltage drops in high power PCBs. Here we summarize some tips to optimize the power distribution when designing a high-power PCB.

High-Performance Materials

Choose materials suitable for high current applications like FR-4, metal substrates, or composite materials. These materials have lower resistance, higher thermal conductivity, and better mechanical strength to handle high currents and heat concentration.

Current Distribution Balance

Implement balanced current distribution by adding current balancers, balancing resistors, or current balance layers. This reduces the resistance and hot spots, enhancing reliability and stability.

Avoid Cross-Talk Between Power and Signal Traces

Keep high current paths separate from digital signal paths to minimize interference. This reduces electromagnetic interference (EMI) and improves overall performance.

Solid Copper Pour for High Current Paths

Use solid copper pours for high current paths. This increases current-carrying capacity, improves heat dissipation, and minimizes voltage drops.

Thermal Management for Power Paths

Use large copper areas, vias, and exposed copper to enhance heat dissipation. Proper thermal management prevents component and product damage due to overheating.

EMC Radiation Control

Use wider trace widths, larger hole diameters, and increased spacing to manage EMC radiation. Keep high current paths short and place them away from sensitive components.

Why is Copper Thickness Critical in High Power PCB Design?

Copper thickness plays a vital role in determining the current-carrying capacity and thermal performance of high power PCBs. Here are some data points:

Standard Thickness: For high power applications, copper thickness typically ranges from 2 oz/ft² to 6 oz/ft².

Current Capacity: A 2 oz/ft² copper layer can handle approximately 10 amps, while a 6 oz/ft² layer can carry up to 30 amps.

Thermal Performance: Thicker copper layers improve heat dissipation, reducing the risk of overheating.

How Does PCB Layout Affect Signal Integrity in High Power Designs?

PCB layout is a critical factor that influences signal integrity and overall performance in high power designs. Consider these points:

Trace Length: Minimize the length of high-speed signal traces to reduce signal loss.

Consistent Trace Widths: Maintain consistent trace widths to ensure uniform current distribution.

Separation of Power and Ground Planes: Reduces noise and crosstalk.

Differential Pairs: Use differential pairs for high-speed signals to enhance signal integrity.

Adequate Spacing: Ensure adequate spacing between traces to prevent interference.

Designing a high power PCB requires a comprehensive understanding of various factors, including thermal management, material selection, power distribution, copper thickness, and PCB layout. By addressing these considerations, you can optimize your PCB designs for high power applications, ensuring reliability and performance. At Best Technology, we specialize in high power PCB solutions tailored to meet your specific needs. Our expertise and commitment to quality make us the ideal partner for your high power PCB projects. Choose Best Technology for unparalleled performance and reliability in your PCB designs.
