How do you make a simple circuit diagram?

The following are the steps to make a simple PCB circuit diagram:

1. Circuit design planning:

Clarify the purpose and performance of the PCB, and determine parameters such as power supply voltage, current, and signal frequency.

Select components based on function, and check the data sheet to determine the package, pins, and electrical parameters.

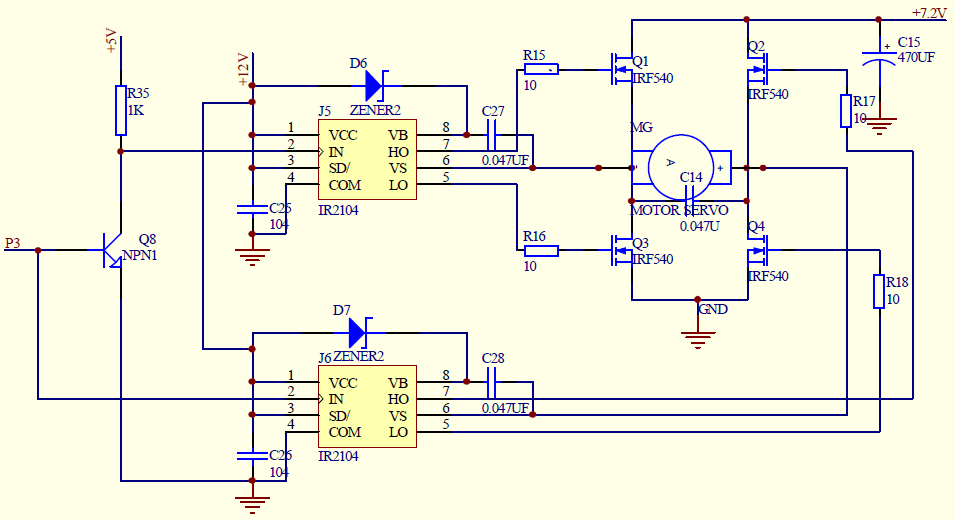

2. Draw a schematic:

Select EDA software (such as Altium Designer, Eagle, KiCad, etc.) or draw it manually with pencil and graph paper (need to be converted to electronic format).

In the software, find symbols from the component library and drag and drop them, or manually draw component symbols according to the standard and mark the names.

Use the software to connect component pins with a wiring tool, and manually use a ruler and pencil to connect. Pay attention to the connection point representation and neat lines.

Mark component parameters, names, packages, and network names or signal names.

3. PCB layout:

Create a new PCB file and import schematic information.

Determine the PCB size and shape according to requirements, such as selecting a 50mm×50mm square.

Drag and drop components from the library into the board frame, divide them according to function, and pay attention to the spacing that is conducive to welding and heat dissipation, such as separating high-power components.

4. PCB wiring:

Set wiring rules according to circuit properties and component parameters, such as power line width 1-2mm, signal line width 0.2-0.5mm, and spacing not less than 0.2mm.

Manual wiring (using software wiring tools to draw lines according to connection relationships and control the direction), automatic wiring (manual adjustment after the software automatically completes) or a combination of the two.

Check whether the wiring is compliant, whether there are short circuits or open circuits, optimize the wiring of key signals, and reduce interference.

5. Design inspection and output files:

Use the software DRC function to check the PCB design and modify the problems according to the prompts.

Generate Gerber files (for PCB manufacturing) and BOM files (list component information). Different software has different generation methods, such as “File”-“Fabrication Outputs” in Altium Designer to generate Gerber, and “Reports”-“Bill of Materials” to generate BOM.

What is a circuit board diagram called?

Circuit board diagrams are usually called PCB diagrams (printed circuit board diagrams). Concepts related to PCB diagrams include schematic diagrams, block diagrams, and assembly diagrams.

PCB diagrams are detailed layout diagrams of circuit boards, which accurately show the location of components on the circuit board and the routing of the circuit. Through the PCB diagram, you can clearly understand the location of circuit components on the PCB, the connection method, and the circuit direction, thereby ensuring the correctness and reliability of the circuit.

PCB diagrams play a vital role in the manufacturing and assembly process of electronic equipment. It guides the layout and connection of electronic components to ensure that the physical construction and assembly of the circuit are correct. The unnecessary copper foil is removed chemically or mechanically to form the path of the circuit, and then the electronic components are installed on the circuit board to form a complete circuit.

Which software is used for PCB designing?

Commonly used software for designing PCBs include Altium Designer, Cadence Allegro and Mentor Graphics PADS PCB.

1. Altium Designer

Altium Designer is a world-renowned PCB design software that supports the entire process from schematic design to PCB layout. It has a wealth of library components, powerful automatic routing functions and a variety of export functions, which can help designers complete the design quickly and efficiently.

2. Cadence Allegro

Cadence Allegro is a commercial EDA software with very rich functions. It provides control over the components and PCB software used in electronic systems to ensure the smooth implementation of the project. Allegro has a number of technologies such as three-dimensional electronic design and simulation, printed circuit board design, hardware description language, etc., which can control the workflow more finely.

3. Mentor Graphics PADS PCB

PADS PCB is a PCB design software developed by Mentor Graphics, which is widely used in communications, automobiles, medical and other fields. It provides a clear and intuitive user interface and powerful library component management functions, making the PCB design process simpler and more convenient. PADS PCB supports fully automatic routing and signal integrity analysis, effectively improving design quality and efficiency.

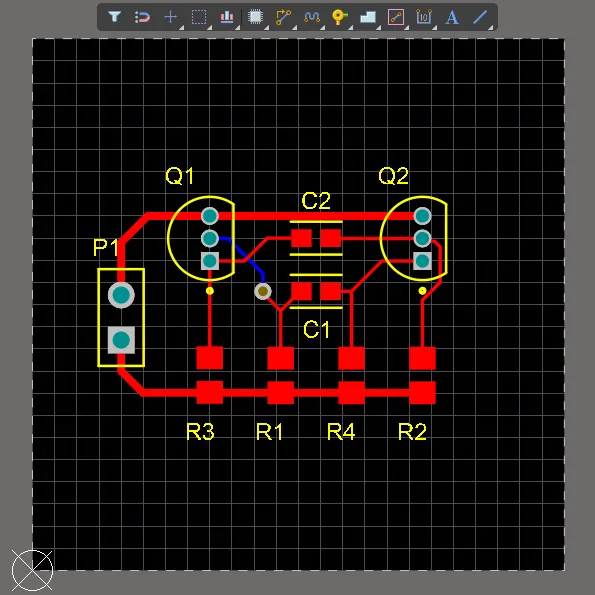

How do you draw a PCB layout?

1. Preparation

Complete the schematic design and check the component connections and parameters.

Be familiar with the component package and check the appearance, pin distribution and other information.

Determine the PCB size and shape according to the application scenario and installation requirements.

2. Layout principles

Place components according to functional partitions for easy debugging and maintenance.

Arrange components according to signal flow to avoid line bending and crossing.

Ensure component spacing and consider installation requirements.

3. Start layout

Import the schematic information into the PCB design software.

Place components manually and arrange them neatly using software tools.

Adjust component positions, considering signals, routing and electromagnetic interference.

4. Check and optimize the layout

Check whether it complies with the layout principles and design rules.

Optimize the layout to facilitate wiring, considering multi-layer PCBs and high-frequency signals.

What does j mean on a circuit board?

The “J” on the circuit board usually stands for a socket (Connector). In circuit board design, the letter “J” is often used to represent various types of connectors or sockets for connecting different circuit boards or external devices. In addition, “J” sometimes also stands for a jumper (Jumper), which is used to temporarily connect two nodes.

What is k in a circuit diagram?

The letter “K” in a circuit diagram usually represents components such as relays and contactors. In a circuit diagram, the letter “K” can represent a variety of electrical components, including relays (KA), contactors (KM), time relays (KT), frequency relays (KF), pressure relays (KP), signal relays (KS), grounding relays (KE), etc. In addition, “K” can also represent emergency stop switches (KS).

These components play different roles in the circuit:

Relay: used to automatically control the on and off of the circuit.

Contactor: used to frequently connect and disconnect high-current circuits.

Time relay: used to connect or disconnect circuits after a specific time.

Frequency relay: used to detect and control frequency signals.

Pressure relay: used to detect and control pressure signals.

Signal relay: used to transmit and control signals.

Grounding relay: used for grounding protection.

These components play an important role in circuit design and maintenance. Understanding their symbols and functions helps to better understand and maintain circuit systems.

What is the difference between a schematic diagram and a circuit diagram?

The main difference between a schematic diagram and a circuit diagram is that they focus on different focuses and usage scenarios.

1. Definition and function

Schematic diagram: A schematic diagram is a graphical representation that is mainly used to represent the logical and functional relationship between components in an electronic device or system. It uses symbols and connecting lines to represent electronic components and signal transmission paths, without involving specific physical layouts and sizes.

Circuit diagram: Circuit diagrams focus more on electrical connections and physical layouts, and are used to show the physical connections and relative positions between components in an electronic device or system. Circuit diagrams use symbols and connecting lines to represent electrical connections, emphasizing electrical connections and physical layout rather than just signal transmission.

2. Usage scenarios

Schematic diagrams: Mainly used in the design and analysis stages of electronic systems. Designers use schematic diagrams to describe the logic and functions of electronic devices or systems for analysis and optimization during the design stage.

Circuit diagrams: Mainly used in the manufacturing, maintenance and testing stages of electronic systems. Technicians use circuit diagrams to plan physical layouts and electrical connections, and visualize the structure and function of circuits before actually assembling and installing electronic devices.

3. Specific application examples

Schematic diagrams: In the design stage, designers use schematic diagrams to describe the overall architecture and workflow of the system to ensure that the logical relationship between the components is correct.

Circuit diagrams: In the manufacturing, maintenance and testing stages, technicians use circuit diagrams for actual circuit connections and troubleshooting.

In general, circuit teensy diagram maker is an indispensable key tool in the field of modern electronic design. Through efficient design processes, precise component layout and wiring functions, and strict rule checking mechanisms, they provide solid technical support for the research and development, manufacturing and innovation of electronic products, making complex circuit design work more efficient, accurate and reliable.

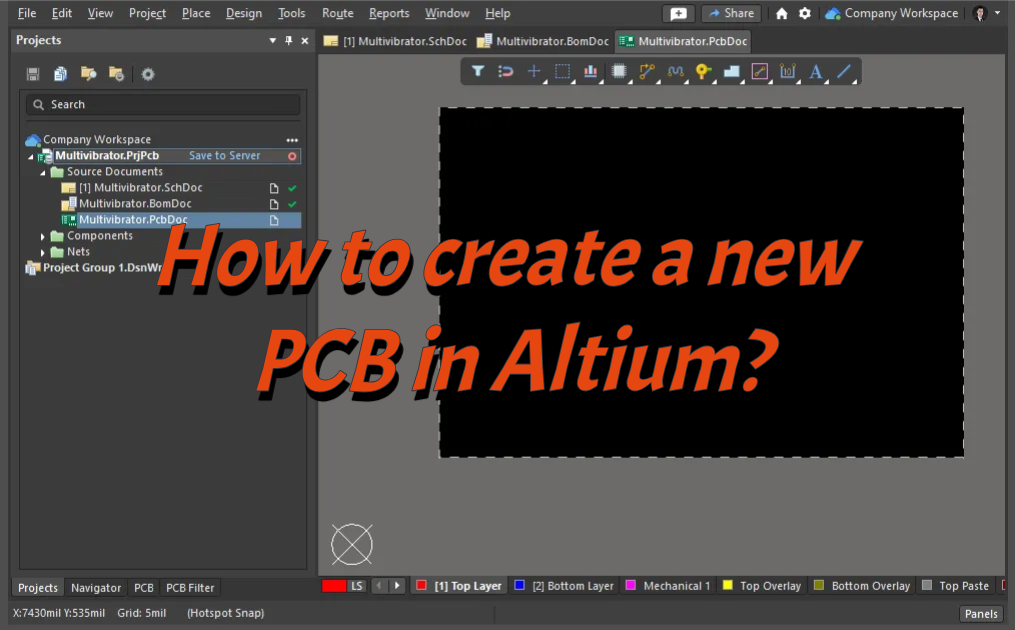

How to create a new PCB in Altium?

Creating a new PCB in Altium mainly includes the following steps:

1. Create a new PCB file

To create a new file: Open the Altium software, select the “File” menu, and then click the “New” option. In the pop-up submenu, select “PCB”, so that a new blank PCB file is created. You can also use the shortcut key “Ctrl + N”, and then select “PCB Document” in the pop-up “New Document” dialog box to create it.

2. Set PCB parameters

Unit setting: Select “Document Option” in the “Design” menu. In the pop-up dialog box, you can select the unit of the PCB. Generally, there are two units to choose from: imperial (mil) and metric (mm).

Grid setting: Also in the “Document Options” dialog box, switch to the “Grids” tab. You can set the Visible Grid and Snap Grid. The visible grid is used as a visual reference during the design process to help users align components and wiring.

Define the board frame: You can use the “Line” tool or the “Keep – Out” tool in the “Place” menu to draw the border of the PCB. If you use the “Line” tool, you need to manually draw a closed polygon to represent the shape of the PCB; the area drawn with the “Keep – Out” tool indicates the range where wiring is prohibited, and can also be used as the boundary of the PCB.

Precisely set the size: Select “Board Shape” in the “Design” menu, and then select “Redefine Board Shape”. At this time, the mouse cursor will become a cross shape. Use the mouse to click on the previously drawn board frame lines, and the software will automatically redefine the shape and size of the PCB based on these lines.

3. Add component library

Open the component library panel: In the “Libraries” panel on the right, if it is not displayed, you can open it through the “Workspace Panels” option in the “View” menu, and then select “Libraries”.

Add library files: In the component library panel, click the “Libraries” button, and in the pop-up “Available Libraries” dialog box, select the “Install” option. Then find the required component library file in the file browser (usually *.IntLib or *.SchLib and *.PcbLib files), select and click “Open” to add the component library to the software.

4. Place components

Find components: After the component library is added, you can find the components that need to be placed on the PCB in the component library panel. You can quickly locate the component by entering the component name, model or package type in the search box.

Place components: After finding the required component, double-click the component name or click the component name and select the “Place” option. The mouse cursor will change to the shape of the component. Move the mouse to the appropriate position in the PCB editing area and click the left mouse button to place the component. During the placement process, you can rotate the component by pressing the space bar to adjust the direction of the component.

5. Component layout

Manual layout: After placing the component, you need to layout the component. When manually laying out, you can adjust the position of the component based on factors such as the electrical connection relationship between components, signal flow, and the mechanical structure of the PCB.

Automatic layout (optional): Altium also provides an automatic layout function. Select the “Component Placement” option in the “Tools” menu, and then select “Auto Place”. However, the result of automatic layout may not be ideal, and manual adjustments are usually required based on the automatic layout to achieve the best layout effect.

6. Wiring

Set wiring rules: Before wiring, you need to set wiring rules. Select the “Rules” option in the “Design” menu. In the pop-up “PCB Rules and Constraints Editor” dialog box, you can set various routing rules such as line width, routing spacing, and via size.

Start routing: Select the “Interactive Routing” option in the “Route” menu, or use the shortcut key “Ctrl + W”, and the mouse cursor will become a cross shape. Click a component pin as the starting point for routing, and then move the mouse to the target pin. The software will automatically generate routing according to the set routing rules. During the routing process, you can switch the routing mode by pressing the “Shift + Space” key combination, such as 45° routing, 90° routing, etc.

7. Design Verification

Electrical Rule Check (ERC): Select the “Design Rule Check” option in the “Tools” menu. In the pop-up “Design Rule Check” dialog box, set the items and parameters to be checked, and then click the “Run DRC” button. The software will check whether the PCB design complies with the previously set routing rules, such as whether there are short circuits, open circuits, insufficient spacing, etc., and generate a check report.

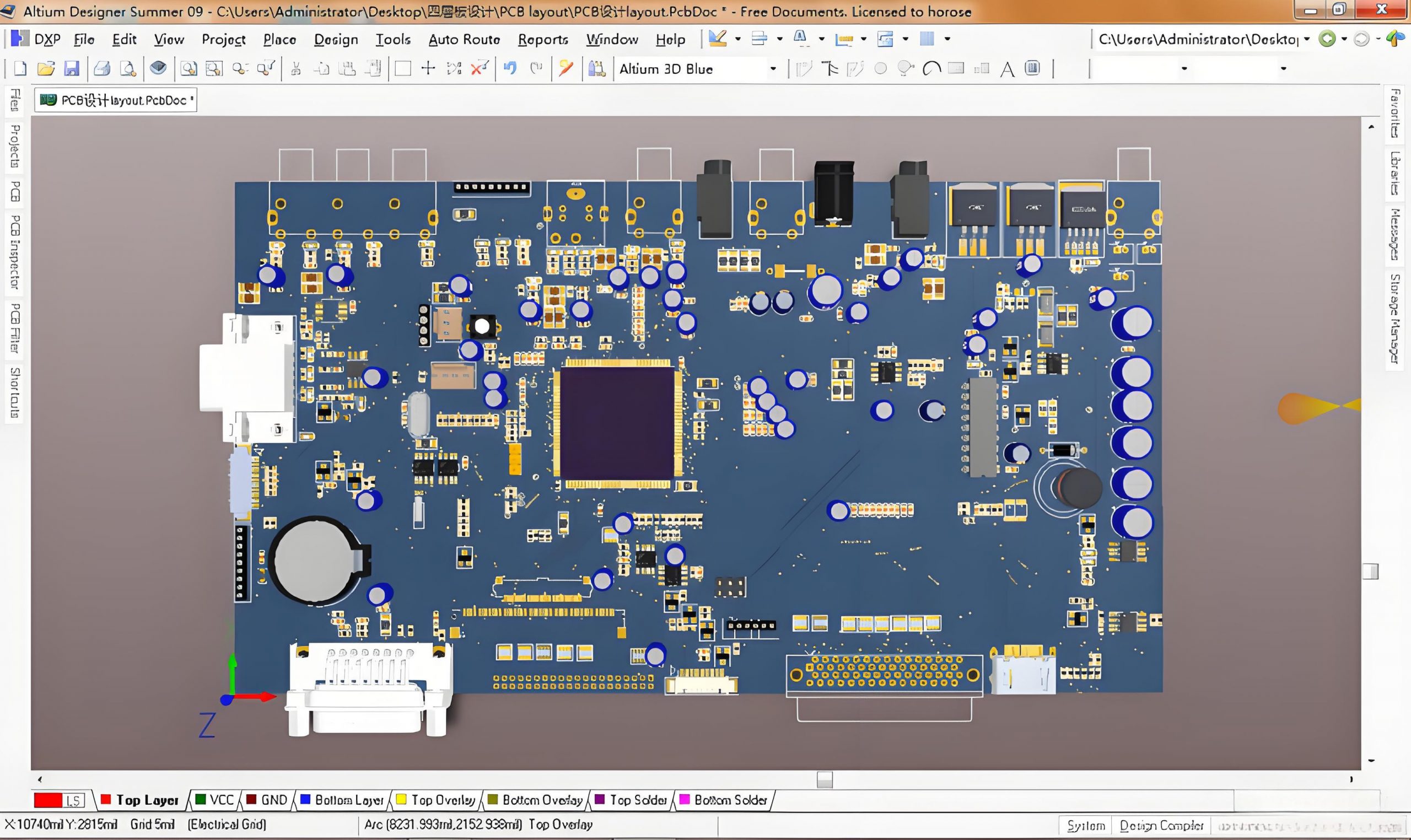

3D view check (optional): Altium also provides a 3D view function, which can help users check the PCB design more intuitively. Select the “Switch to 3D” option in the “View” menu, and the software will display the PCB design in 3D.

Through the above steps, you can create a new PCB in Altium. In the actual design process, you may need to repeatedly adjust and optimize each step according to the specific design requirements and complexity to obtain a high-quality PCB design.

What is the difference between a schematic and a PCB?

The main differences between a schematic and a PCB are in terms of definition, purpose, content, and form of expression.

1. Definition and purpose

Schematic: A schematic is also called a circuit diagram or electrical schematic. It uses graphic symbols to represent circuit components and their connections. The schematic mainly describes the working principle of an electronic device and does not involve a specific physical layout.

PCB: A PCB diagram is a printed circuit board diagram, which is a mapping drawing of a circuit board, detailing the routing, component location, size, and connection method of the circuit board. PCB diagram is the direct basis for the actual production of circuit boards. It is mainly used to guide the manufacturing and assembly process of PCB boards to ensure that components are placed correctly and lines are connected accurately.

2. Content and form of expression

Schematic diagram: The schematic diagram represents components and connection lines in a symbolic form, clearly showing the working principle and logical relationship of the circuit. It does not involve specific physical layout and size, so it is relatively flexible and easy to modify and optimize.

PCB diagram: The PCB diagram shows the actual layout and electrical connection of components, including copper foil lines, pads and vias. PCB diagram is the basis of circuit board manufacturing, involving specific physical layout and connection methods. Once determined, the modification is more complicated.

How to make a PCB from schematic?

Making a PCB from a schematic can be divided into the following steps:

Drawing a schematic diagram: Use circuit design software (such as Altium Designer, Eagle, etc.) to draw a circuit schematic diagram, including the connection relationship of each electronic component.

Design PCB: According to the component layout and connection relationship in the schematic diagram, PCB layout design is performed in the PCB design software, including component placement, wiring, etc.

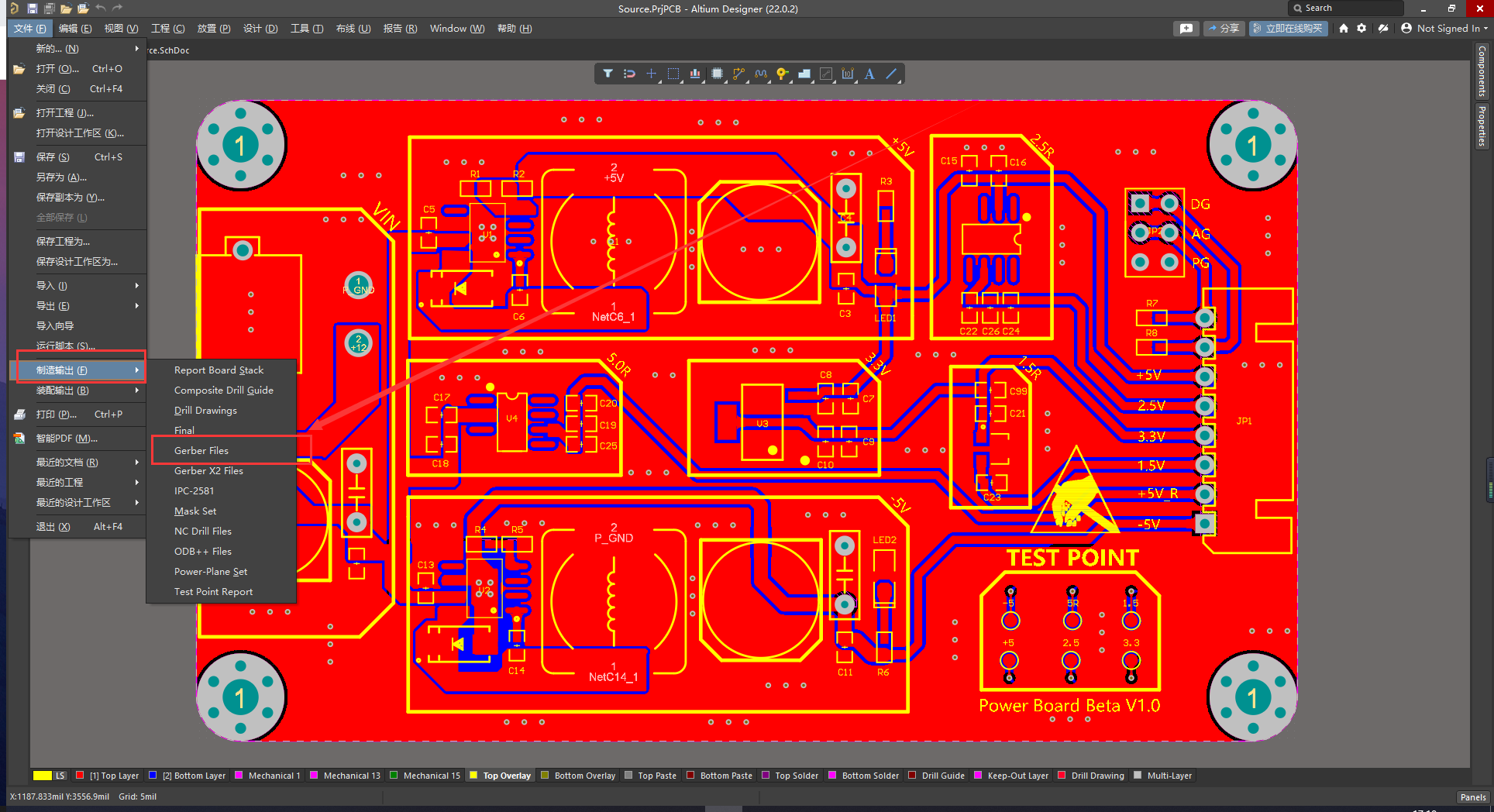

Generate Gerber files: Export the designed PCB files as Gerber files, which is a standard PCB manufacturing file format that contains information about each layer of the PCB, such as copper foil layer, silk screen layer, solder mask layer, etc.

Make PCB: Send the generated Gerber files to the PCB manufacturer or use PCB manufacturing equipment for production. The PCB manufacturer will make the actual PCB circuit board according to the Gerber file.

Solder components: Solder the electronic components to the manufactured PCB circuit board to complete the circuit assembly.

Test and debug: Test and debug the assembled circuit board to ensure that the circuit functions normally.

Can Altium open Gerber files?

Altium Designer can open Gerber files. The specific steps are as follows:

Open Altium Designer software, select “File” in the menu bar, then select “New”, and then click “Cam document” in its drop-down submenu to create a new CAM file.

In the newly created CAM file, select the “Import” sub-item of the “File” menu item, and then select “Gerber” to start importing Gerber files.

Select the Gerber file to be opened in the pop-up window, click “Open”, and then click the “OK” button in the pop-up “Import Gerber” window, and the Gerber file can be successfully opened.

How do I convert PCB to schematic in Altium?

To convert PCB to schematic in Altium, first open the PCB file and export the network table through the “Design” menu (select the appropriate format such as Protel format). Then create a new schematic file and import the previously exported network table through the “Design” menu. Then manually adjust the component layout to make it more reasonable, and finally check whether the connection relationship is correct and improve the schematic, add annotations and logos, etc.

How do you place components from schematic in Altium?

In Altium Designer, first make sure that the required component library has been added. If not, you can add it by opening it in the “Workspace Panels” under the “Libraries” panel menu. Click the “Libraries” button, select “Install) in the “Available Libraries” dialog box that pops up, and find the component library file (such as *.SchLib) and add it.

In the “Libraries” panel, enter keywords such as component name, model or package type in the search box to find the components to be placed. You can also expand the corresponding library folder in the library list and browse to find the components.

After finding the component, there are two ways to place it. One is to double-click the component name directly, and the mouse cursor will change to the shape of the component; the other is to click the component name and select the “Place” option.

Move the mouse to the schematic editing area and click the left mouse button to place the component in the appropriate position. During the placement process, you can press the space bar to rotate the component and adjust its direction. Repeat this operation and place all the required components one by one into the schematic according to the schematic design.

How to make a PCB board step by step?

PCB manufacturing: After receiving the file, the PCB manufacturer manufactures it according to the file information. The manufacturing process includes multiple process steps such as inner layer pattern production, lamination, outer layer pattern production, drilling, electroplating, solder mask coating and silk screen characters.

Component assembly: After the PCB is manufactured, the components are assembled by manual welding or automated equipment, and the electronic components are installed on the PCB board according to the requirements of the BOM and schematic diagram to complete the production of the PCB board.

Functional test: Use test equipment to perform functional tests on the assembled PCB board to check whether the circuit can work normally and whether it meets the design requirements.

Performance debugging: For some complex circuits, performance debugging may be required, such as adjusting component parameters, optimizing signal processing, etc., to improve the performance and stability of the circuit.

In short, throughout the design process, continuous adjustments and optimizations are required to ensure the performance, reliability and manufacturability of the PCB. At the same time, Altium Designer also provides many other functions and tools to help you better complete PCB design tasks.
