More and more people wants to use ceramic PCB instead of FR4 PCB and aluminum PCB, because ceramic PCB is quite better than other PCB, With the advantage of working reliable at low and high temperature (-55℃-850℃), also with high thermal conductivity(24W~28W/m-K for Al2O3 and 150W~240W/m-K for AlN) and low water absorption (0), the ceramic PCB can be applied in many fields such as semiconductor cooler, high power LED and solar-panel arrays. Here let me introduce one of our 2 layers thick film ceramic PCB(BCD18119).

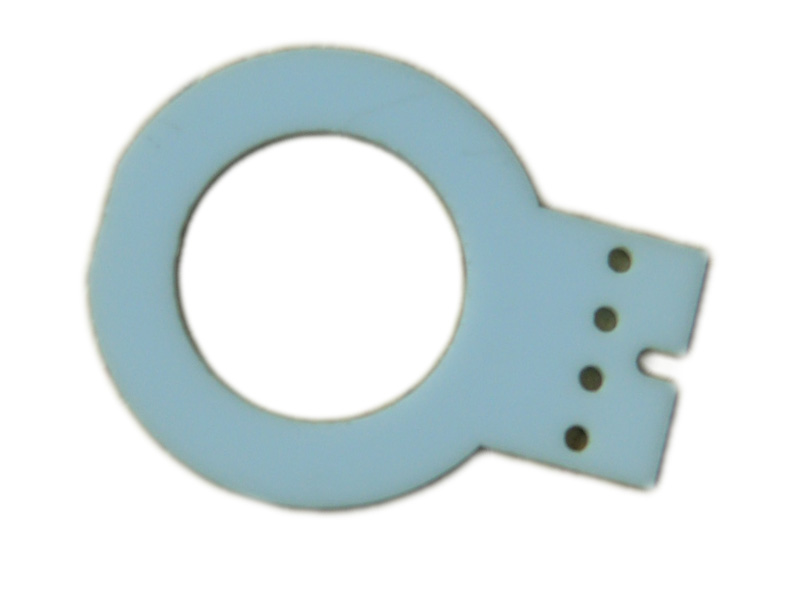

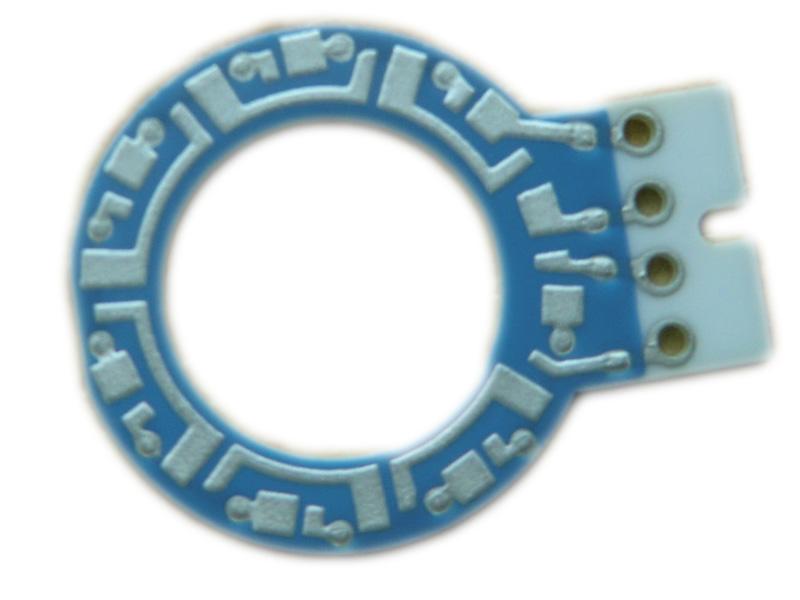

BCD18119 - 2 Layers Thick Film Ceramic PCB



BCD18119 - 2 Layers Thick Film Ceramic PCB




Product Parameters
  • Number of Layers: 2L
  • Product Type: Thick Film Ceramic PCB
  • Base Material: 96%Al2O3
  • Board Thickness: 0.635mm
  • Conductor: AgPd(top layer and inner layer)
  • Thickness of Conductor: >=10um
  • Process: Greenish Glass Glaze
  • Silkscreen: No.

Please contact us today for more information about Ceramic circuit board (Ceramic PCB).
