FR4 Printed Circuit Board

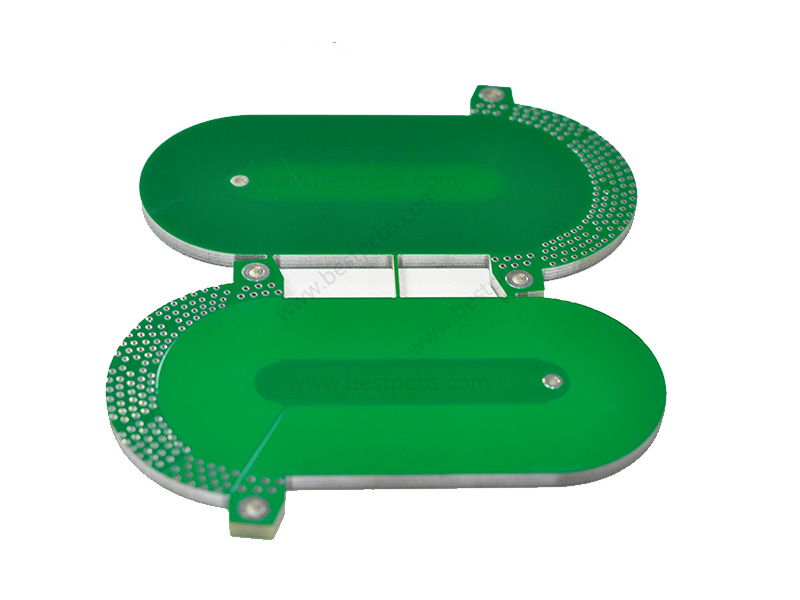

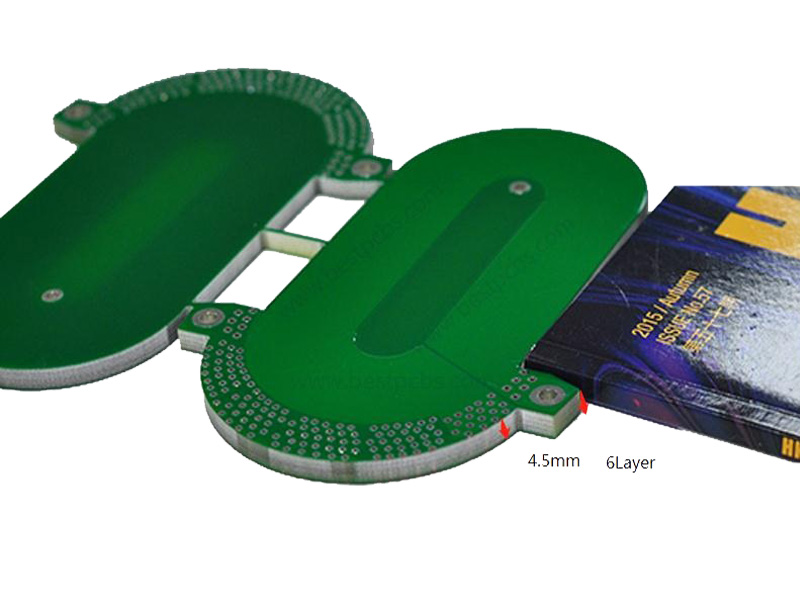

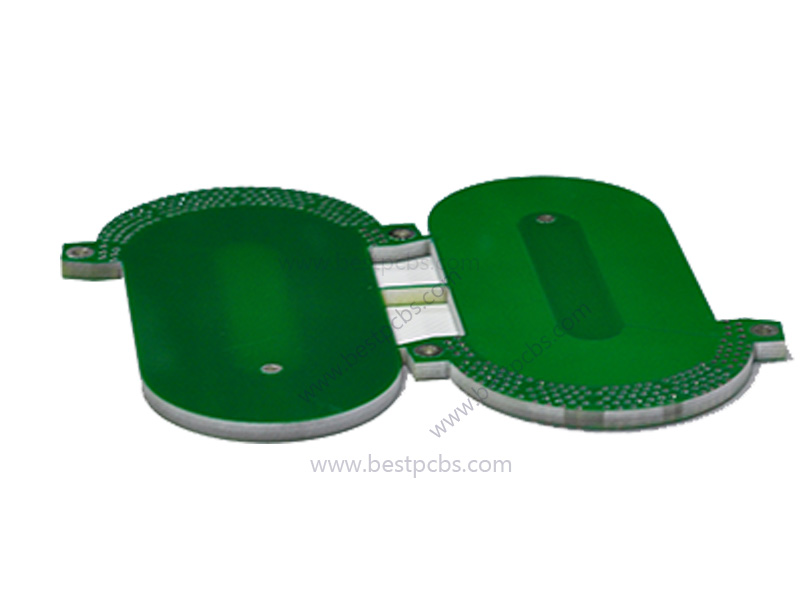

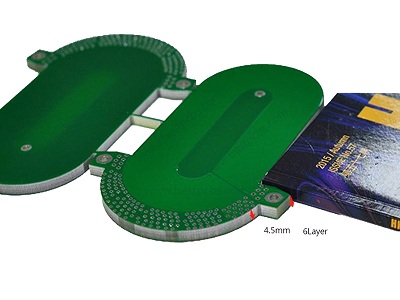

Extra Heavy Copper (6L 4.5mm 9oz) FR4 PCB: BPM18192

Generally speaking, the thickness of ordinary PCBs is 1-2OZ. If the thickness is greater than and equal to 4OZ, it is called heavy copper PCB. Have you ever seen heavy PCB as thick as 9OZ? And it is multi-layer printed circuit board(multi-layer PCB) which layer up to 6L with HASL surface finish.

• 6L  heavy copper PCB
• Board thickness: 4.5mm
• 9OZ  copper  on  both  Layer
• Surface finishing: LF  HASL

Please contact us today for more information about Heavy Copper PCB.
