BPM18142-4L FR4 PCB with High Tg 170

High Tg materials have better heat resistance. With the development of electronic industry, especially the computer is in the trend of multiple functions. Thus, PCB substrate with higher heat resistance is needed as guarantee for the electronic products. Therefore, the difference between the normal FR4 material and the high Tg material is that the latter will be better in mechanical strength, absorbent, thermal expansibility and so on. Here is a 4L FR4 PCB with high Tg 170 to recommend for you. General speaking, the gold plating is 1-3u" , but this board is up to 30u". So that the PCB will do better performance in conductivity and make your electronic products more perfect.

4L FR4 PCB with High Tg 170

6L FR4 PCB with High Tg 170

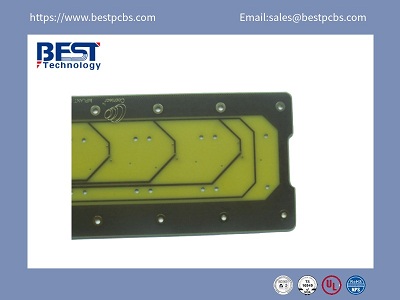

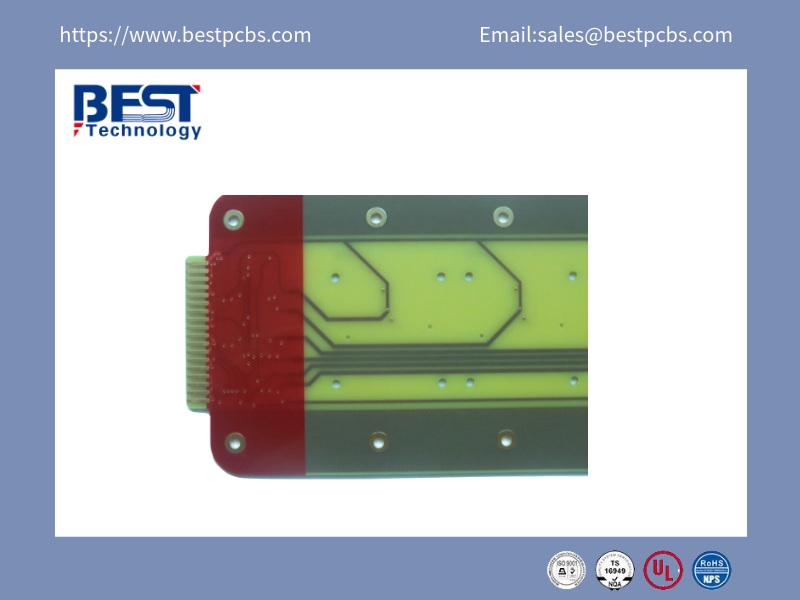

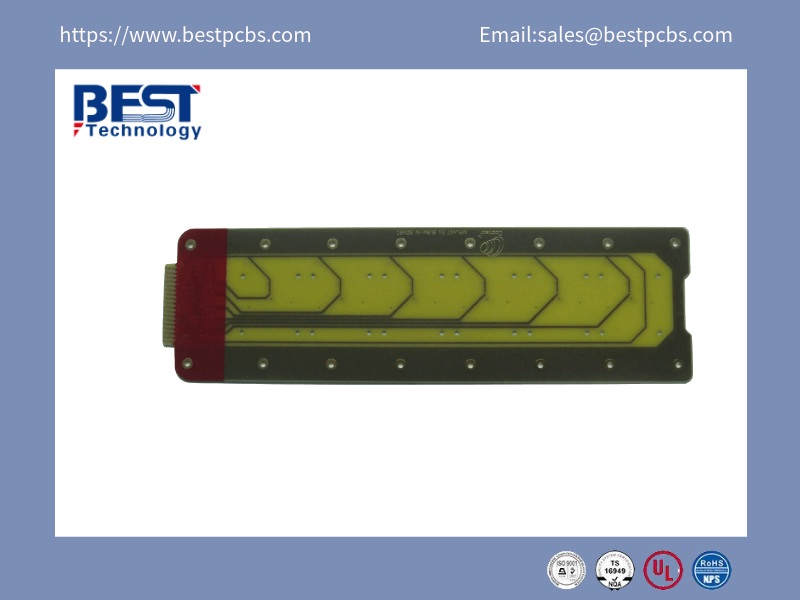

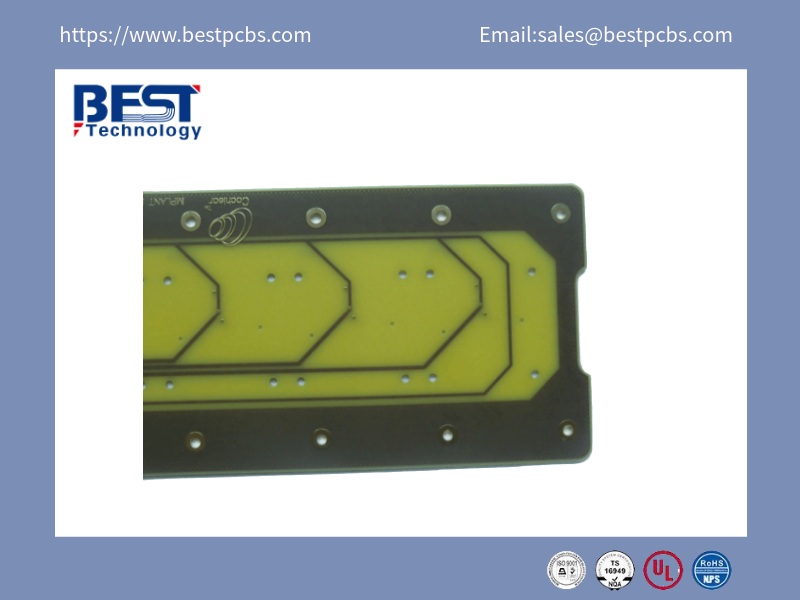

4L FR4 PCB with High Tg 170

Product Parameters
  • 4L FR4 PCB
  • Tg value: Tg 170(FR4)
  • Board thickness: 1.6mm+/-10%
  • Copper thickness: 1OZ
  • Surface finishing:Gold plating(Au30u''+Ni200u'')
  • Red oil
  • 0.6mm x 30°chamfer at both sides edge connector

Please contact us today for more information about High Tg PCB .
