BPM20939 - 8L HDI PCB, 8L FR4 PCB, Tg170

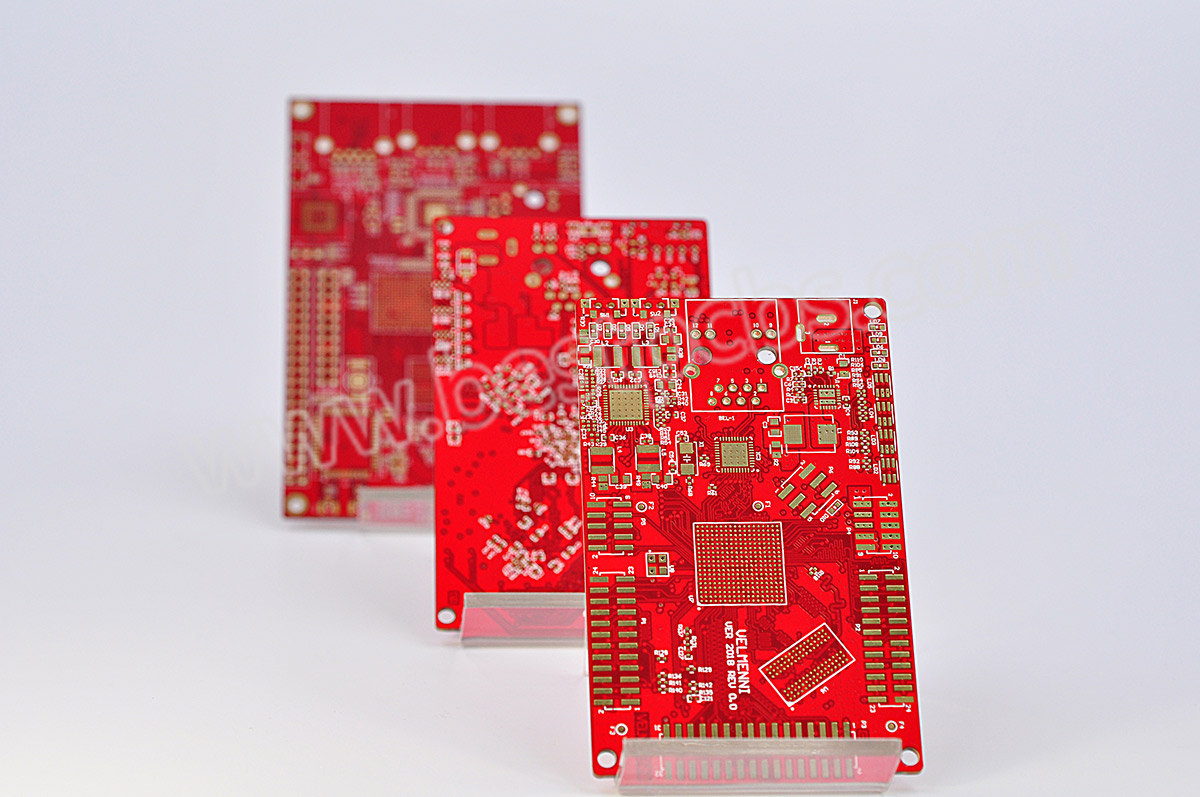

BPM20939 - 8L HDI PCB details 1

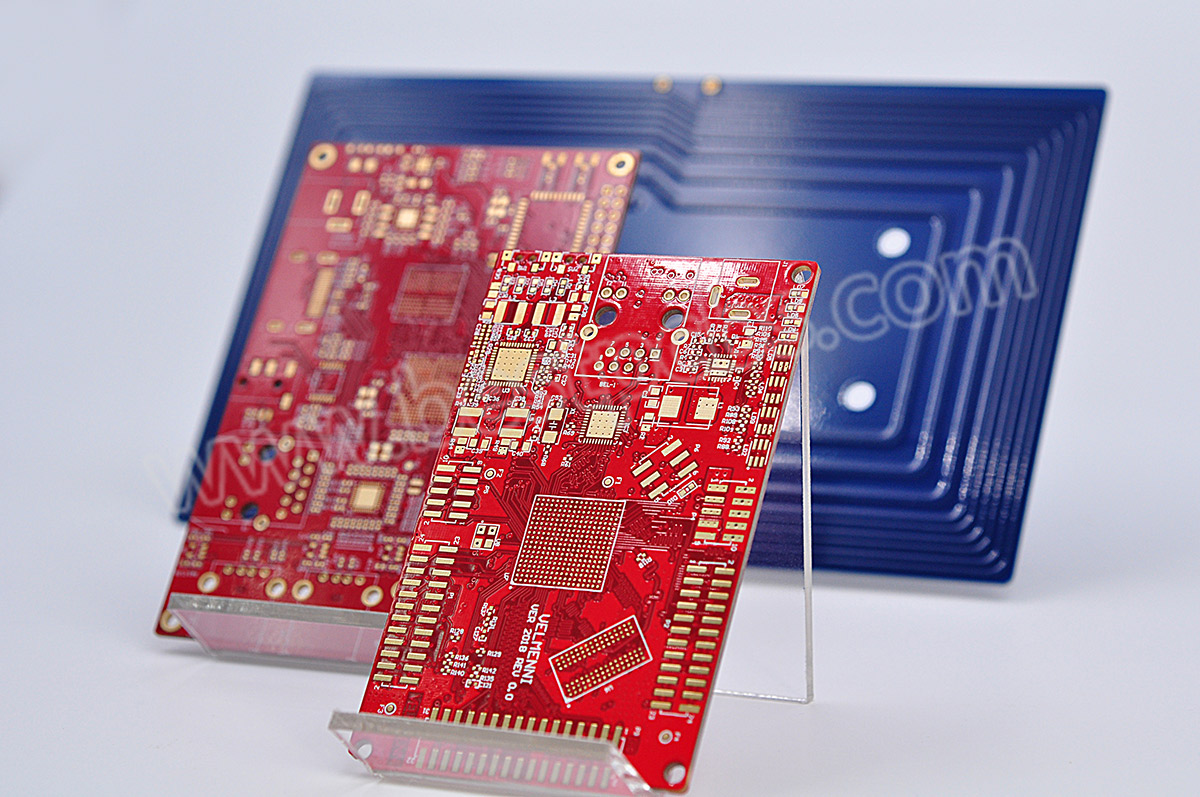

BPM20939 - 8L HDI PCB details 2

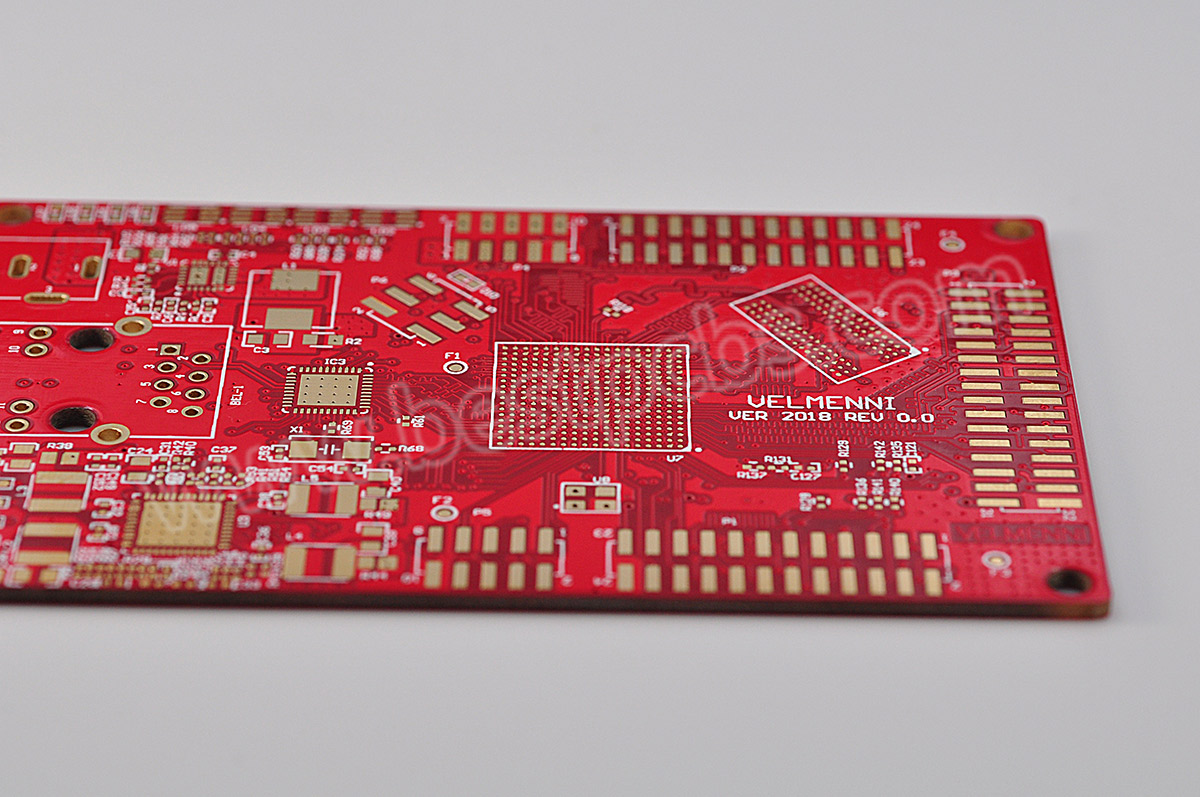

BPM20939 - 8L HDI PCB details 3

8L PCB Specifications:
  • Construction: 8 layers
  • Base material: FR4 Tg170
  • Board Thickness: 1.6mm+/-0.10mm
  • 1oz copper in each layer
  • red solder mask
  • white silk screen
  • ENIG (Au 1u")
  • with blind&burid vias 1-2,2-5,5-6
  • 0.2mm BGA
  • via in PAD
Please contact us today for more information about FR4 PCB.
